When I got back from my first shift of the day, this was waiting for me.

It’s the metal bits for the Paul Sellers’ router plane.

All unpacked. And I couldn’t wait to make a start.

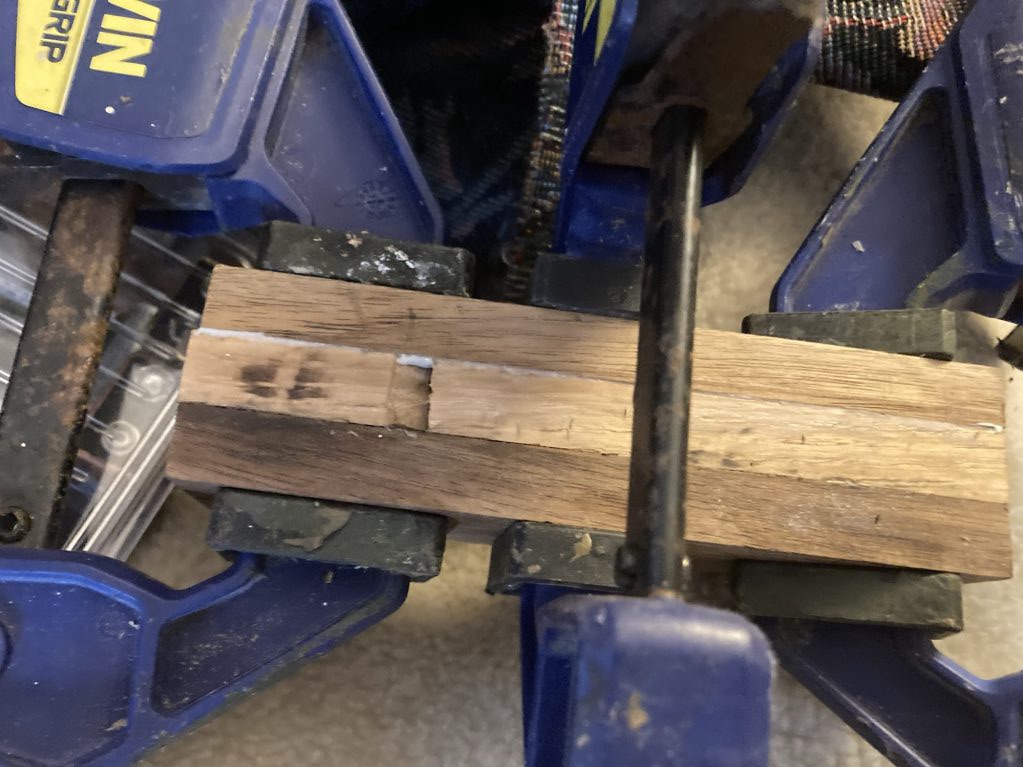

The thing I started out with, was the groove in the piece of wood that holds the cutting iron.

I got really carried away with this. It took aeons to get it done. Hopefully I’ve done a decent job?

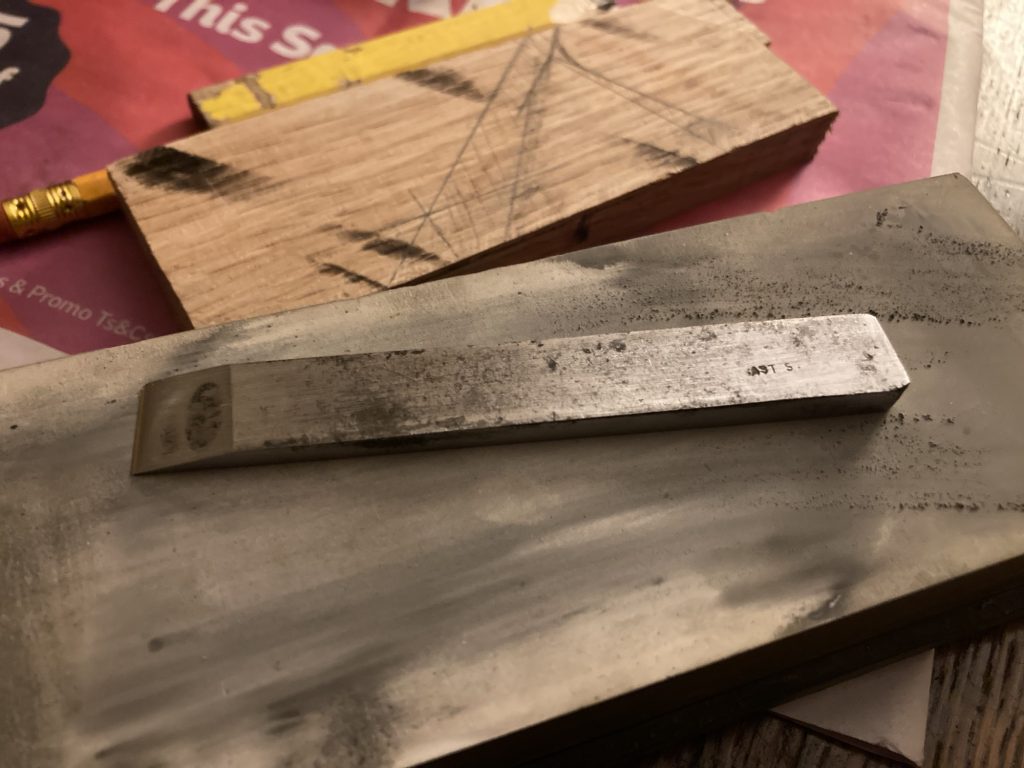

The cutting iron is very substantial. And it’s sharp enough, out of the box, to work with. I used it in finagling the groove it sits in.

Yesterday I made all the basic parts for this plane, and then put them together. Today, I’m working on the central groove, the blade, and hopefully getting it to the stage of being a usable tool.

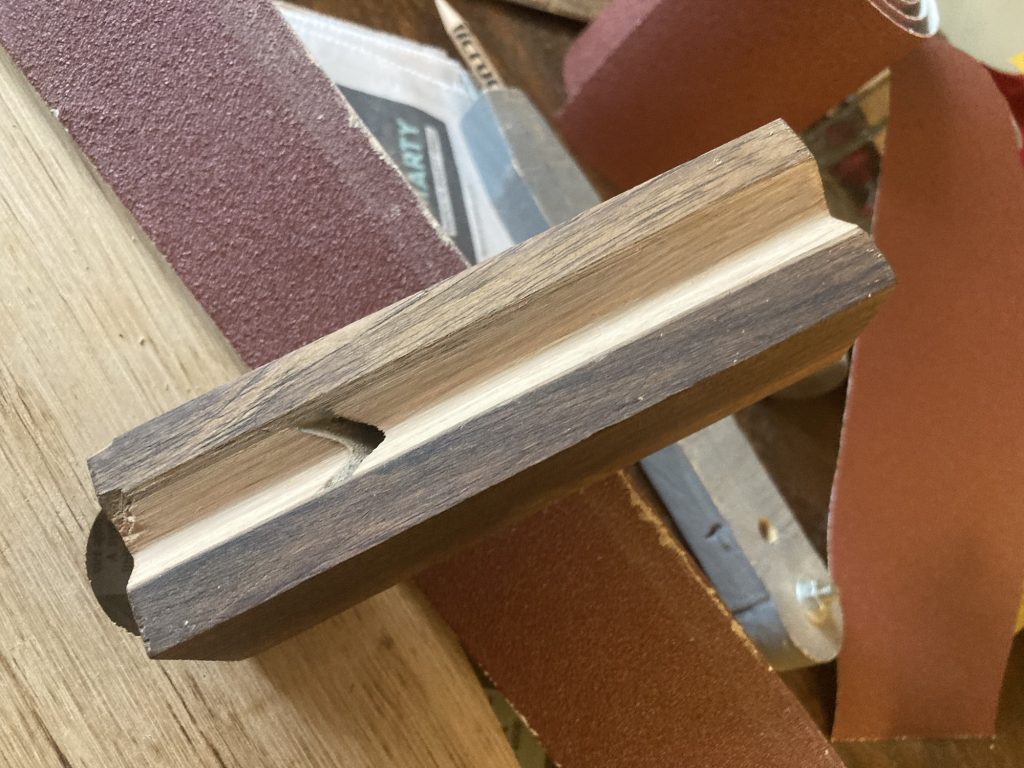

I tried cutting the ‘pyramid’ groove in the base of this plane with a router. But that was a disaster! Fortunately I did it – after numerous tests – in a shallow enough pass it didn’t entirely bugger the plane.

In the above two images you can see a bit of the residual damage the router attempt left, at right.

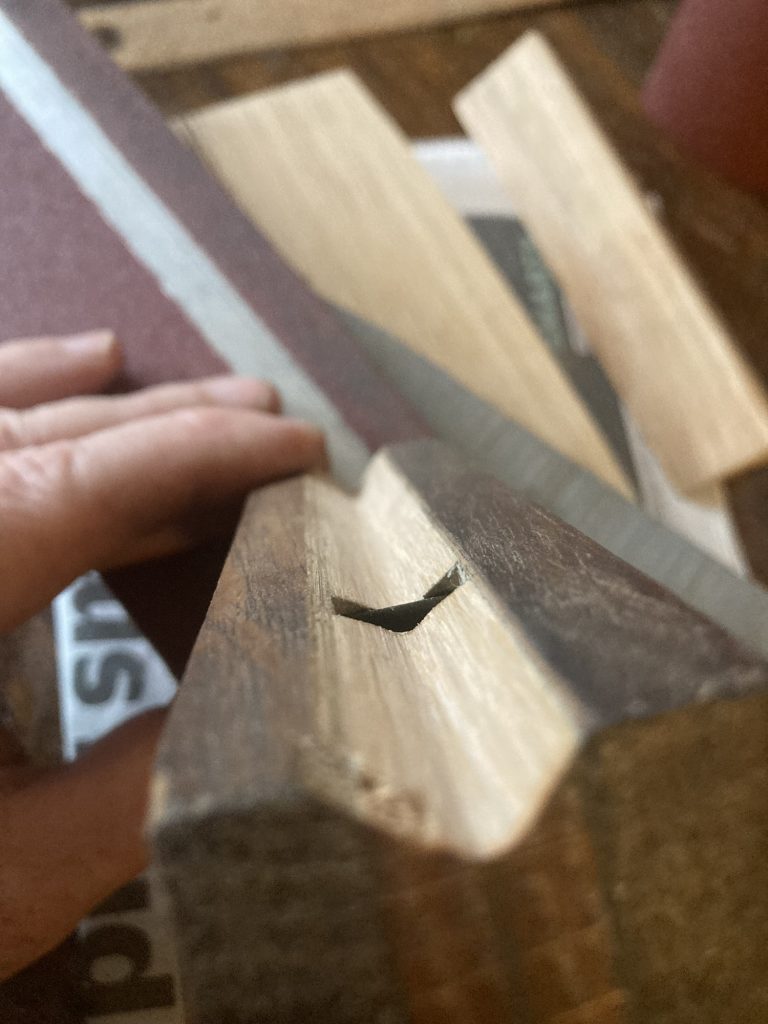

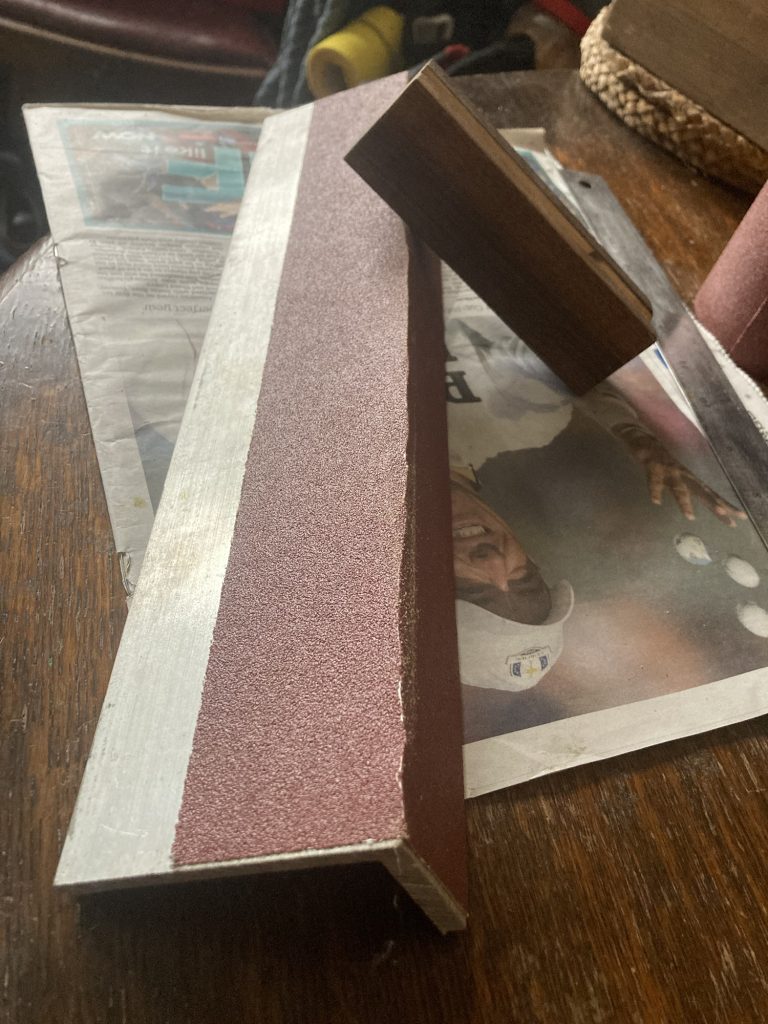

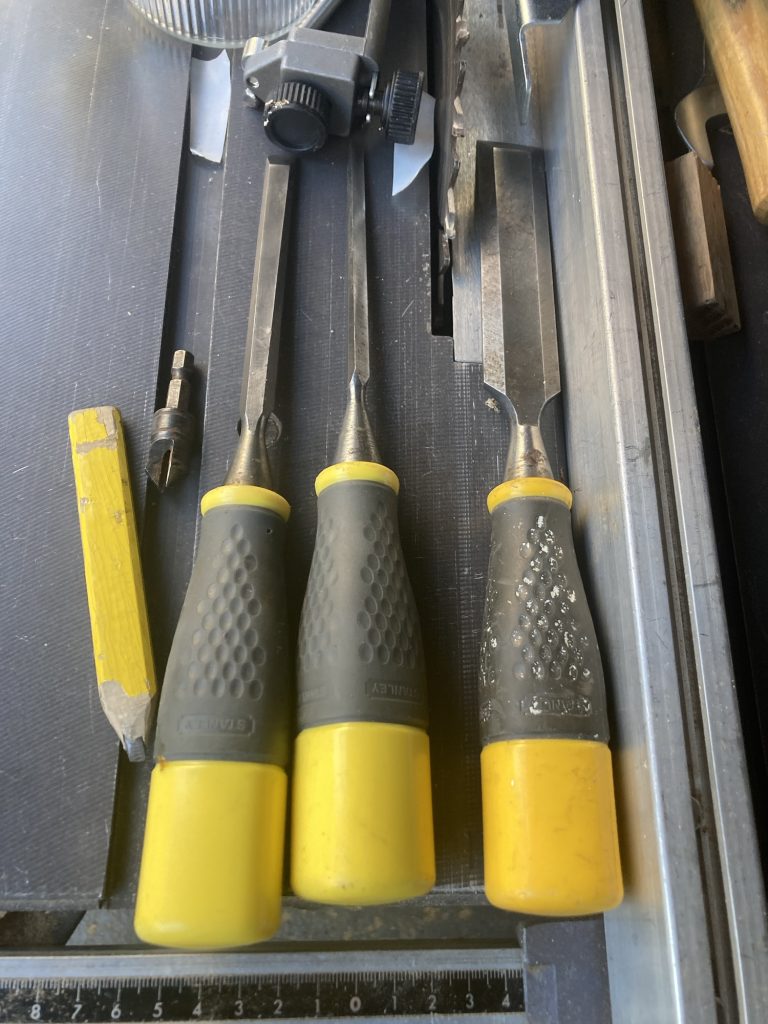

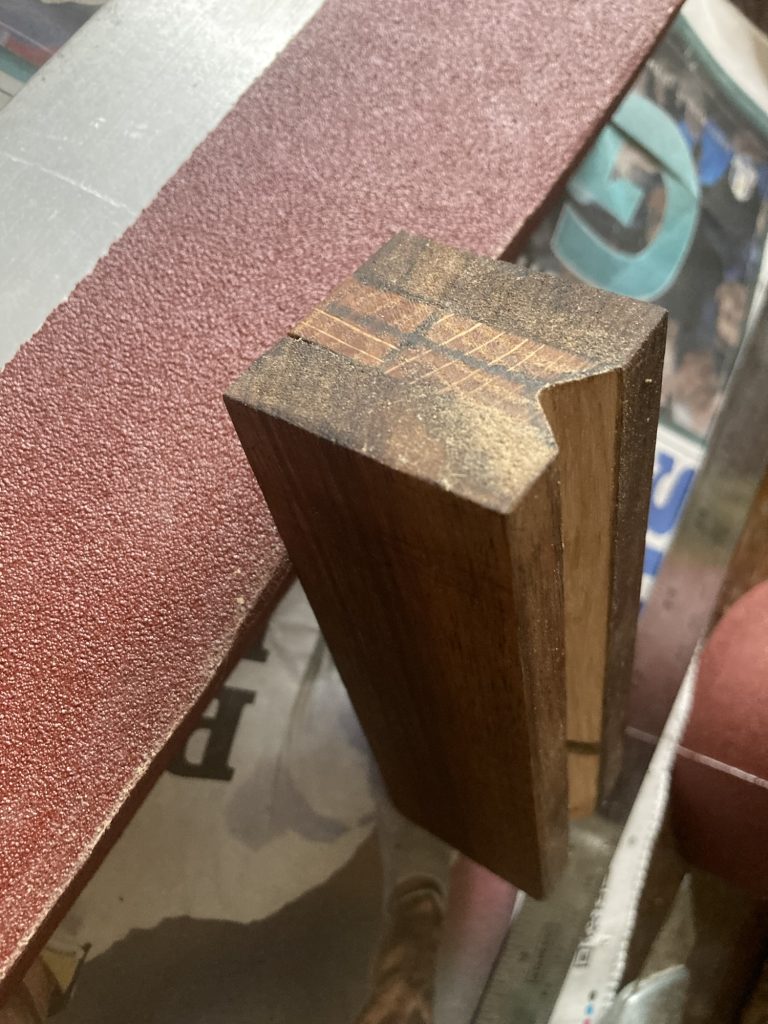

So, after attempting to tidy things up with chisels (a slight improvement), I came up with the right-angle sanding jig, shown below.

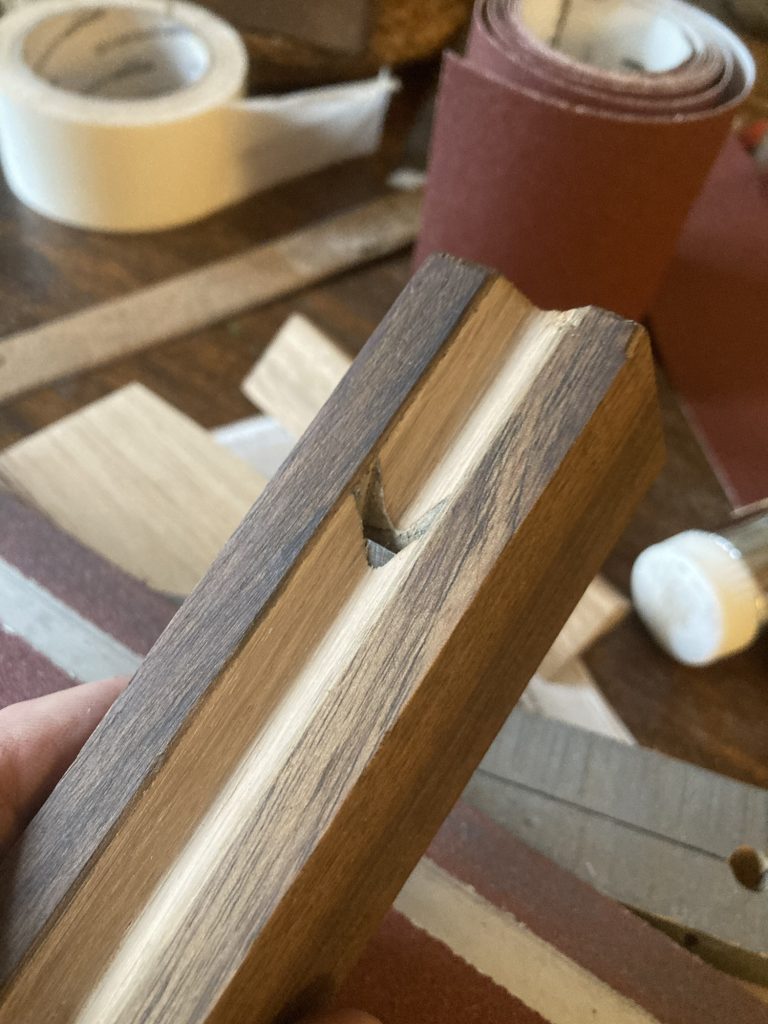

A massive improvement. But still far from perfect. And not the sharp, crisp 90° channel (at a 45° angle) I was after.

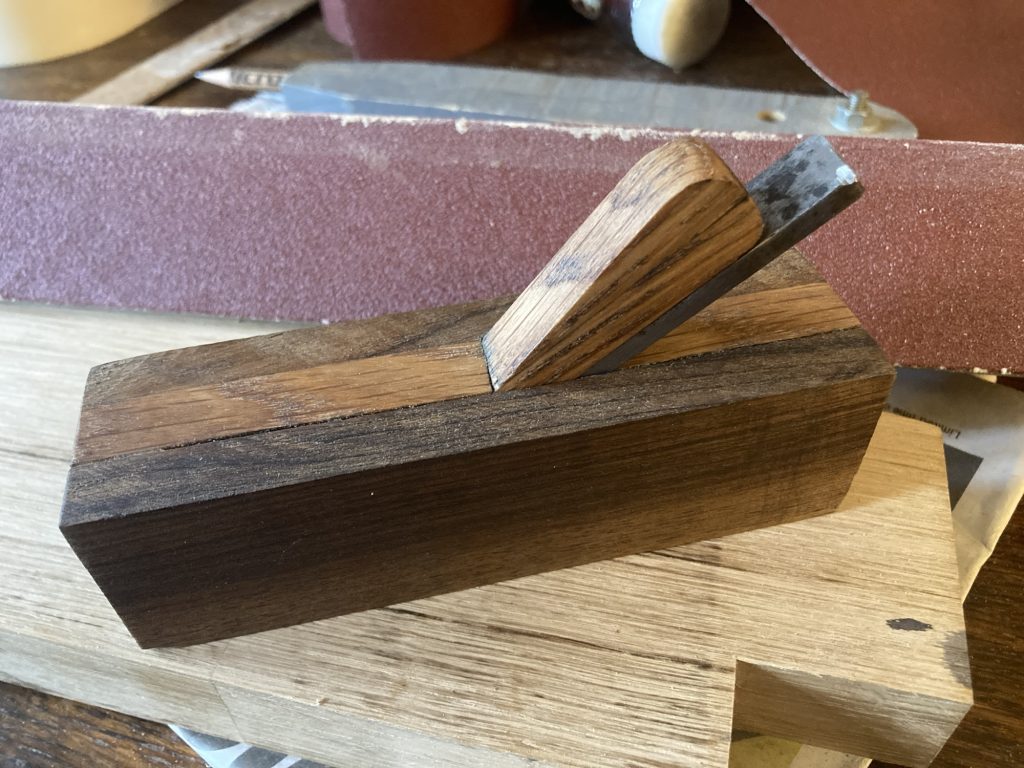

Having improved the groove, I tried setting the blade, or ‘iron’, and the wedge that holds it, in situ. After a few failed attempts (and much sanding of the iron, mostly trying to reduce the width a little, for a better fit), I finally got there.

A few attempts at using it established several things: 1) It does work as intended, albeit not very well (yet); 2) the blade ain’t sharp enough at present; 3) this is the biggest issues (after dullness o’ the blade) – there’s currently nowhere for chips or shavings to go, other than into the cramped/limited space where blade and wedge reside.

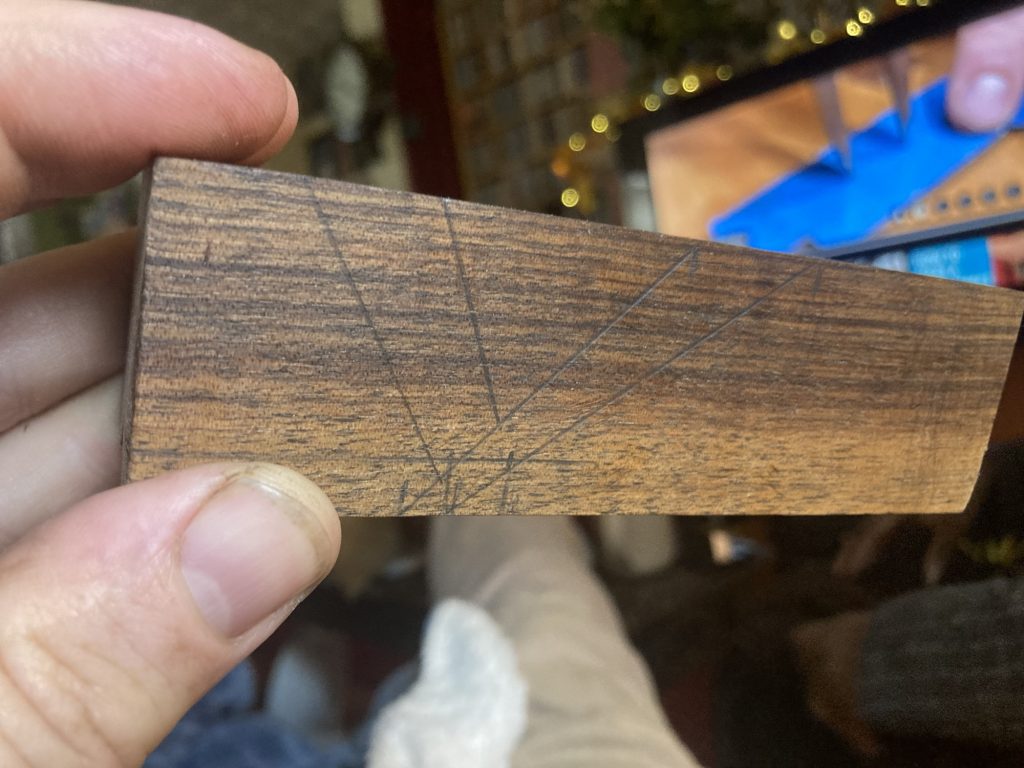

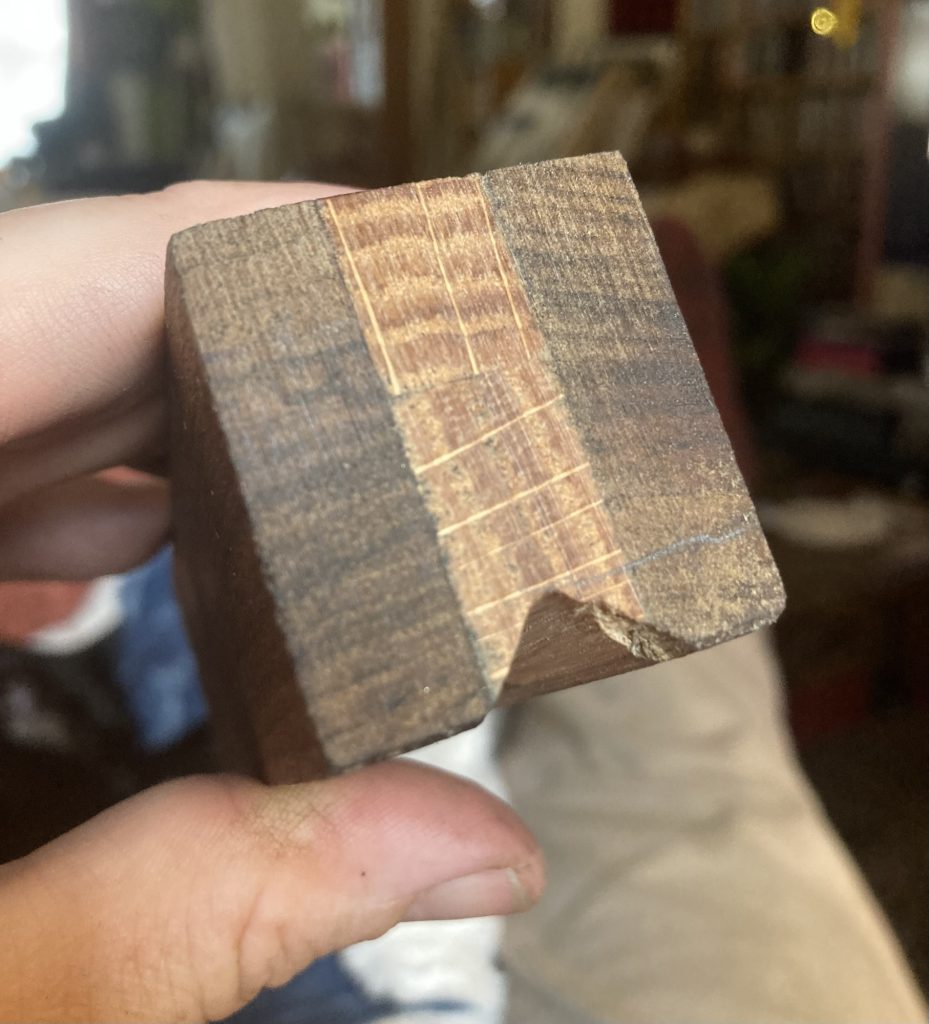

So, I’ve pencilled in a channel that needs drilling/cutting/chiselling, and otherwise hollowing out. Hopefully this will allow the chips or shavings/planing waste to exit, without clogging up the plane.

BUGGER BALLS!

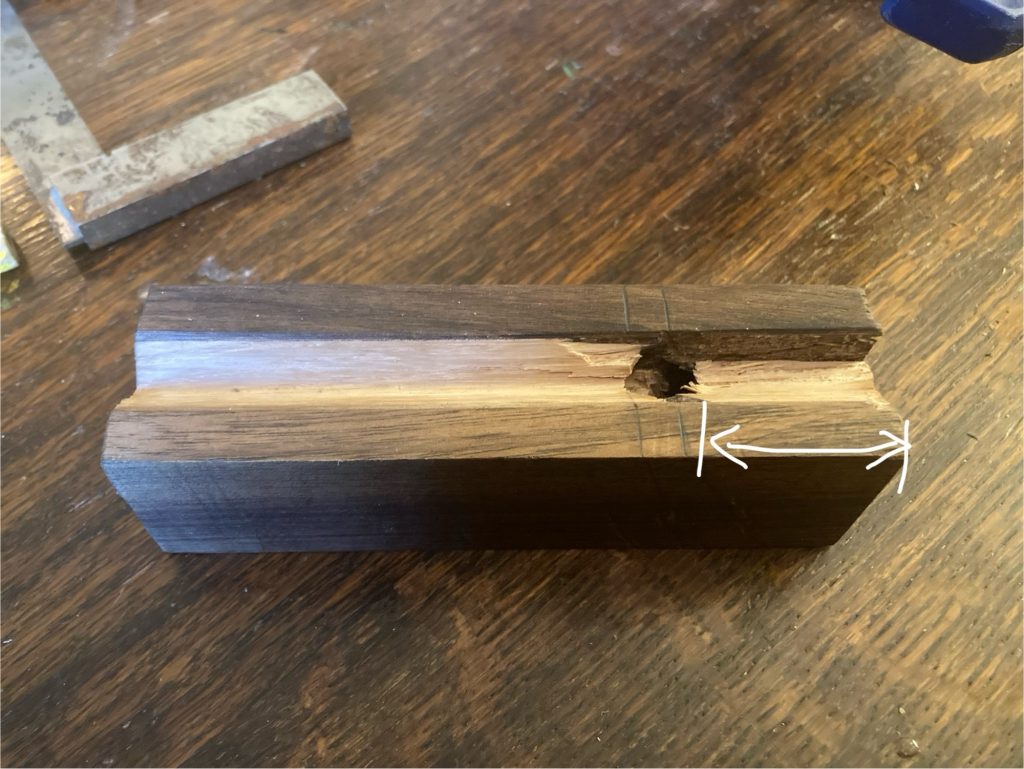

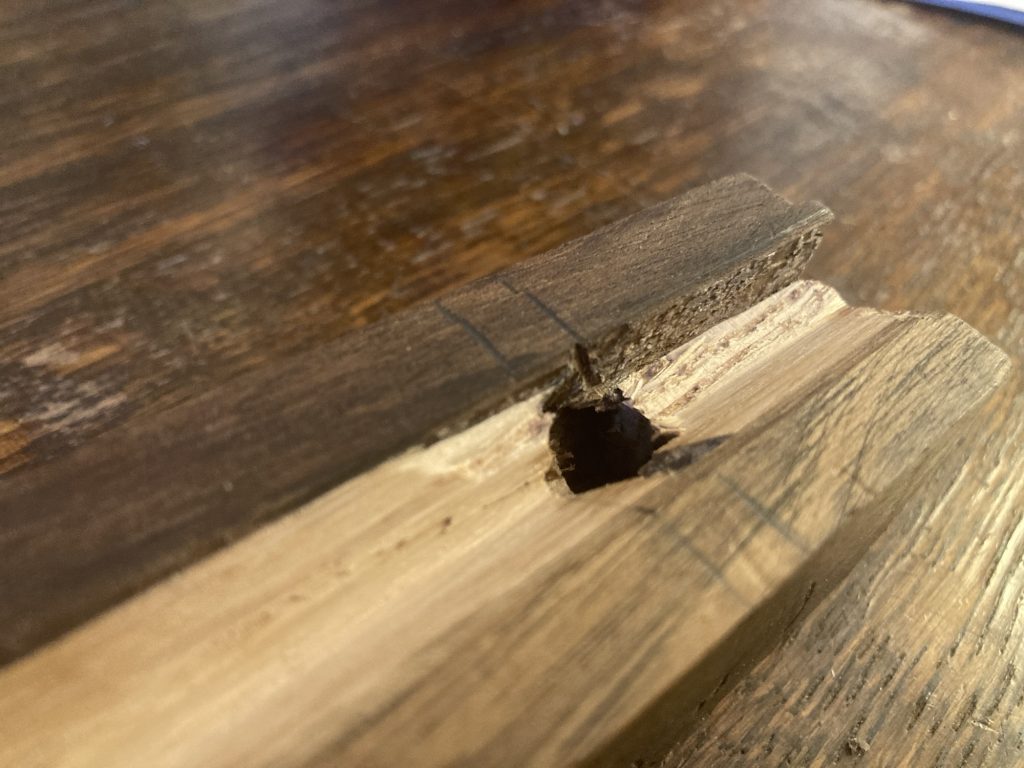

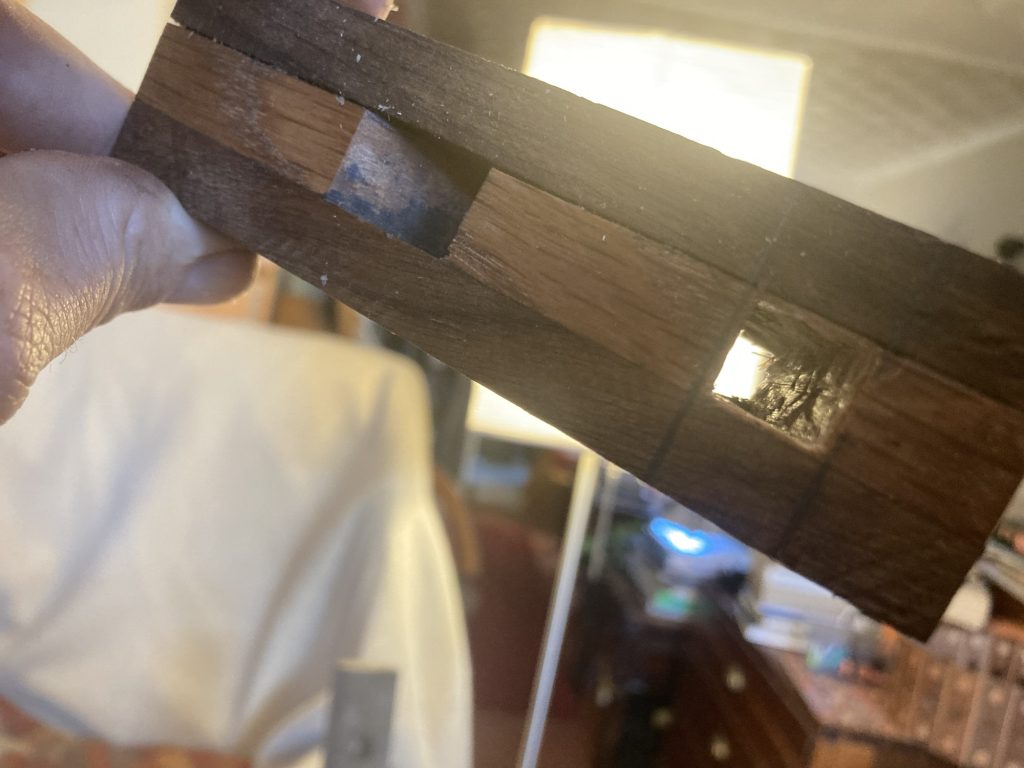

Oh well… I’ve butchered this first plane attempt. In trying to chop out a chip/shaving channel, I completely jiggered the sole of the plane.

Some of the white oak tore out altogether. And a large-ish spilt in the walnut compounds the tragedy. Never mind! As depressing as I might find this outcome, the lesson I’m learning is to simply try again.

Some stuff I’ve been able to persist with, possibly even salvage. But not this time. And anyway, there were some design flaws inherent in this first attempt.

One of these issues was that the part that leads into the cut was too short; to better register as you move into the ‘cut’, a longer run up is good!

But the real issue was the omission altogether of a vent for chips and shavings. Lord knows I’ve watched enough Stavros Gakos videos I ought to have known better!

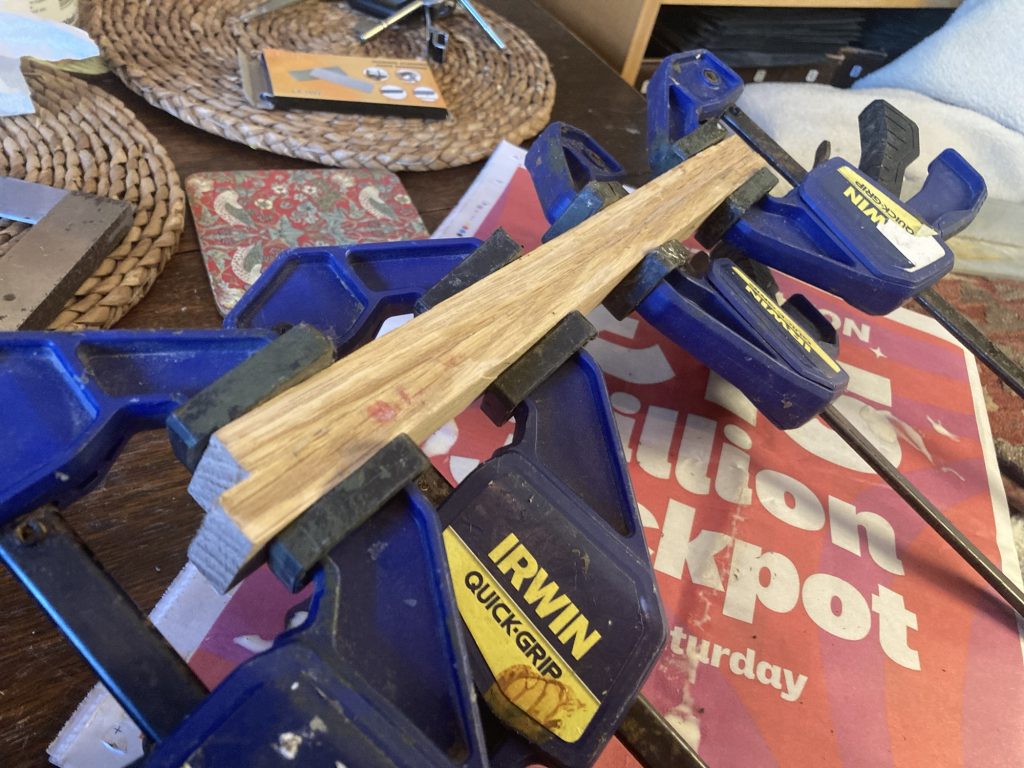

So… I’m gluing up some oak scraps, ready to try again. Plus I still have some walnut left. Although I might instead use keruing?

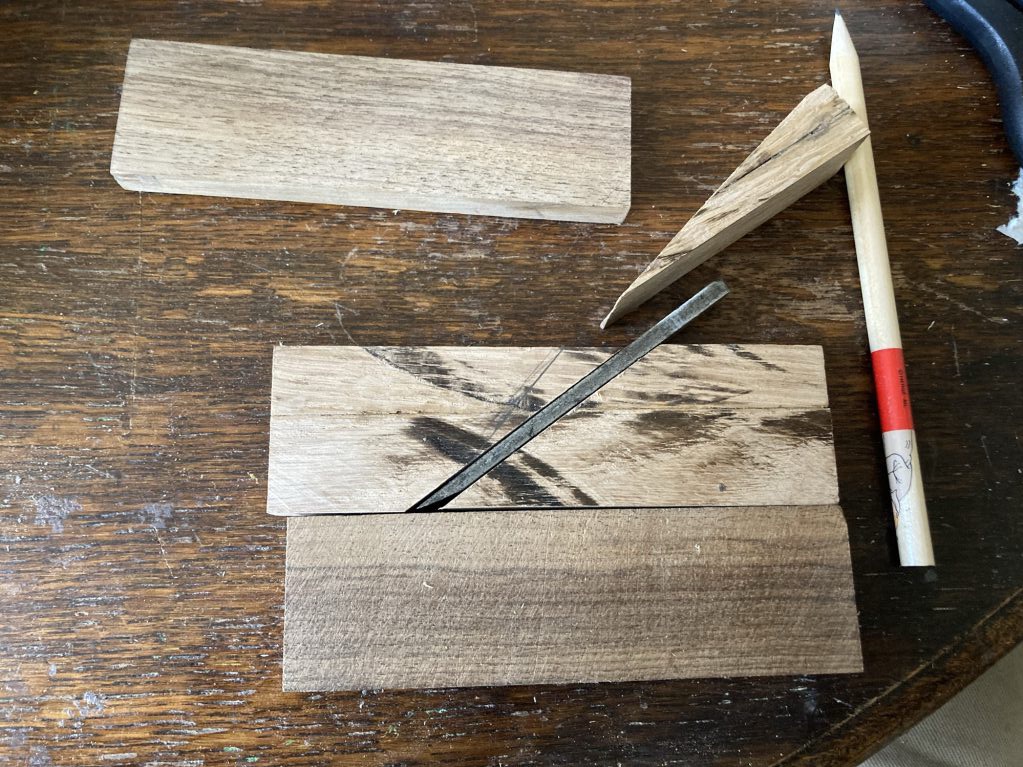

I’ve started out making my 1st plane. It’s designed to cut on a very shallow plane, of just 35°. But the angle it’ll cut will be a 45° bevel.

There’s a deal more to be done on it. And it may not even work. It’s my first try at such a thing!

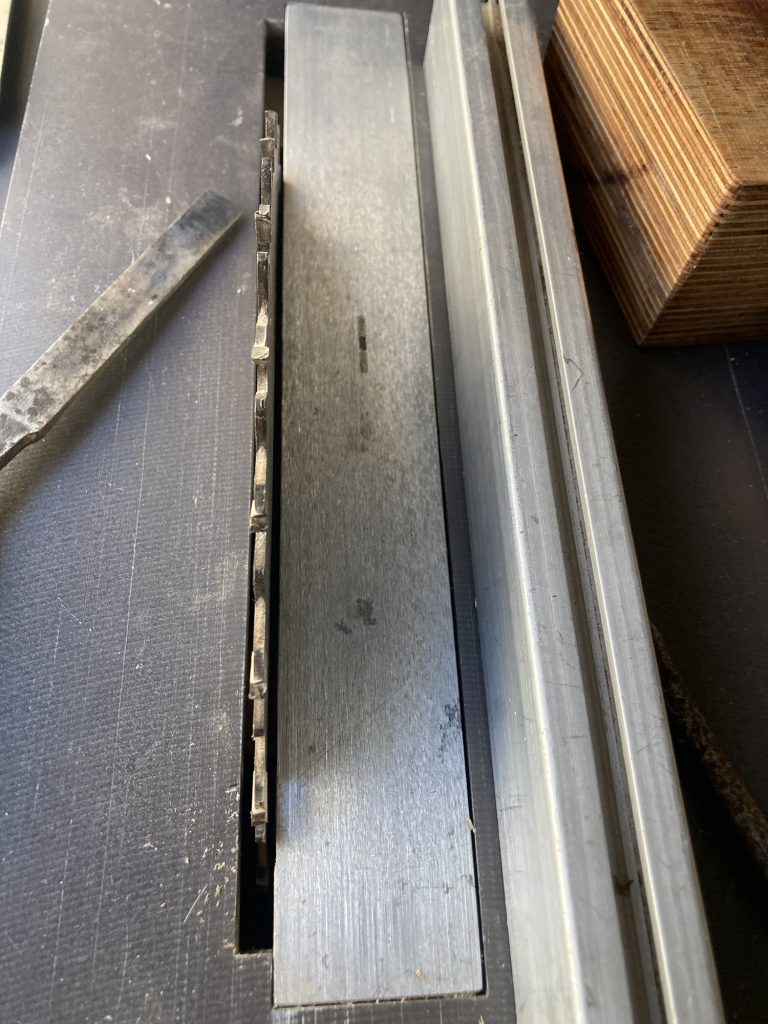

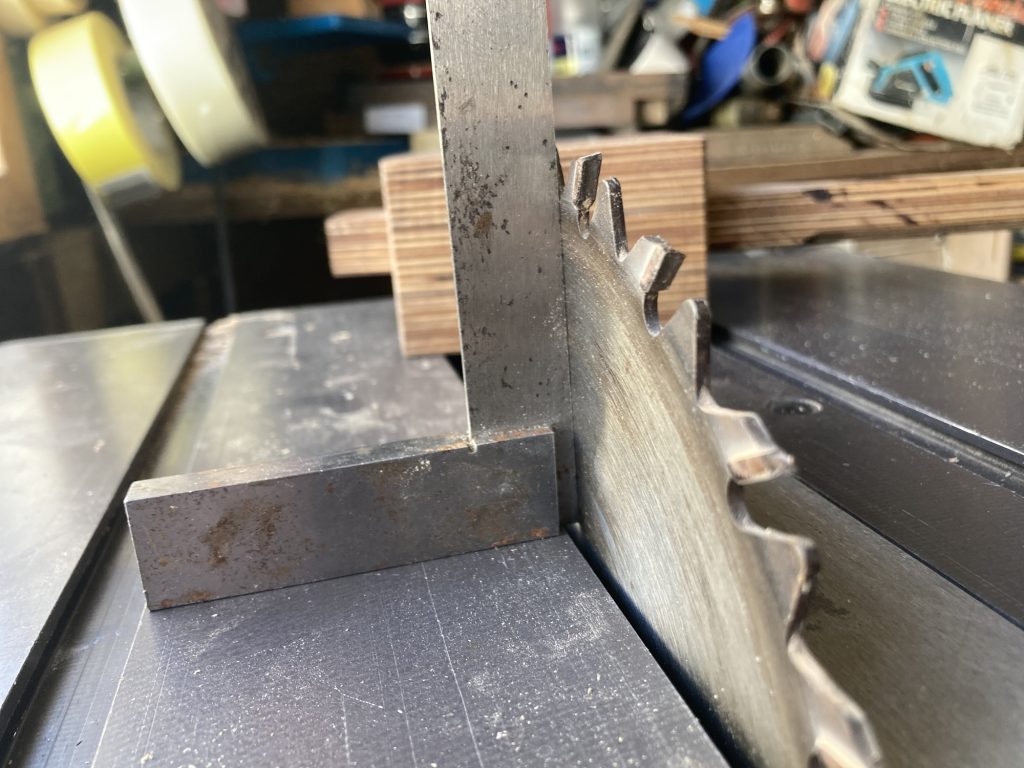

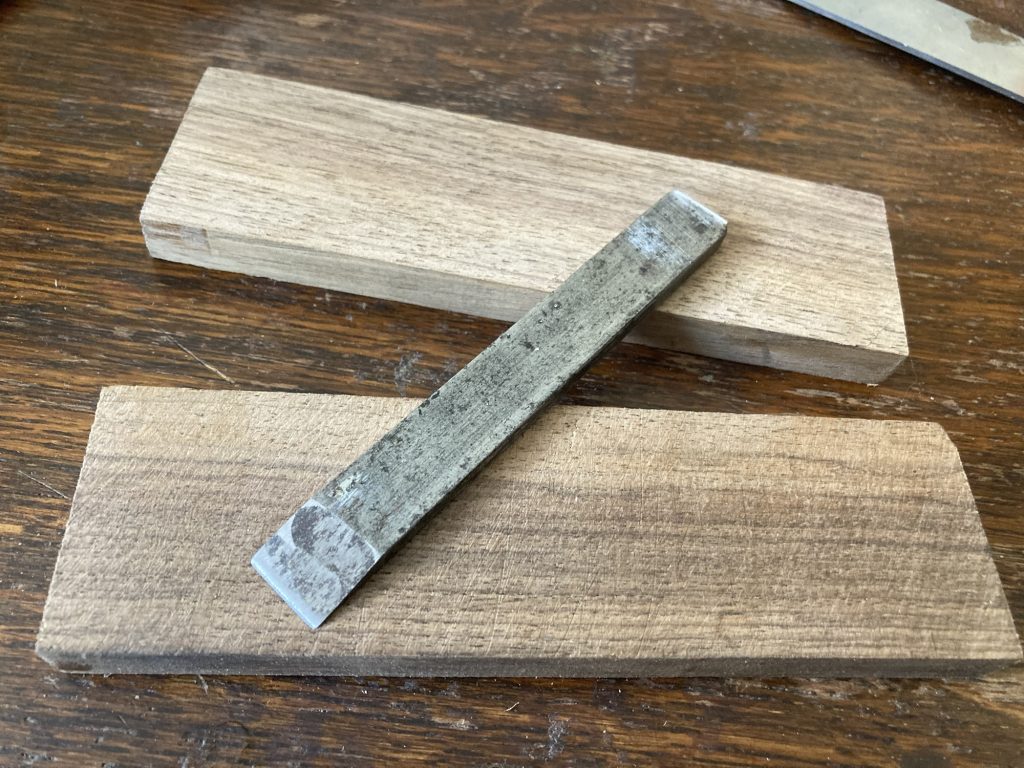

Above: checking the table saw for square. Pretty good. I butchered an old chisel, to get the cutting iron.

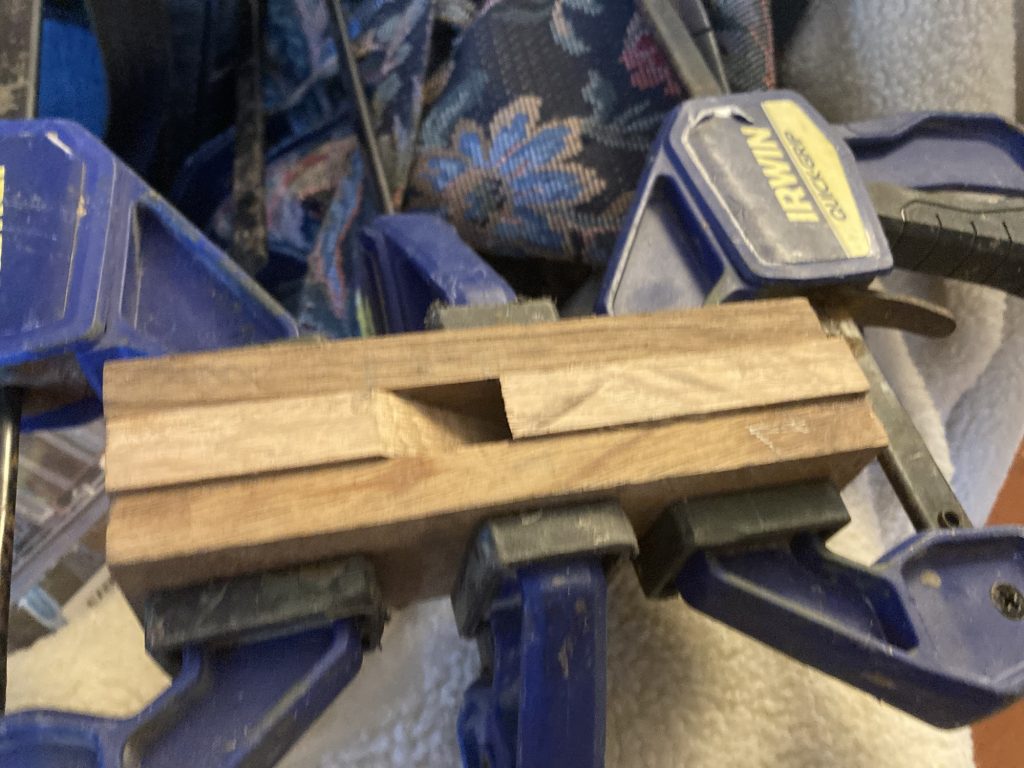

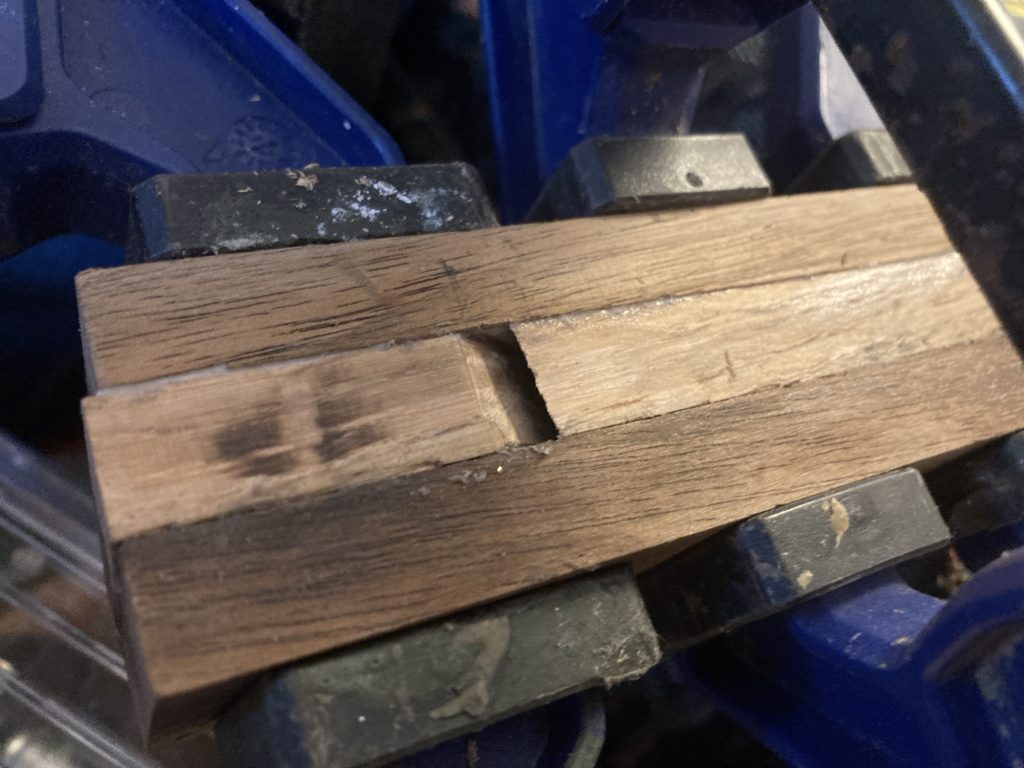

Having cut the wood, I glued it all together. It’s a kind of ‘jazz’ design, inasmuch as it’s improvised.

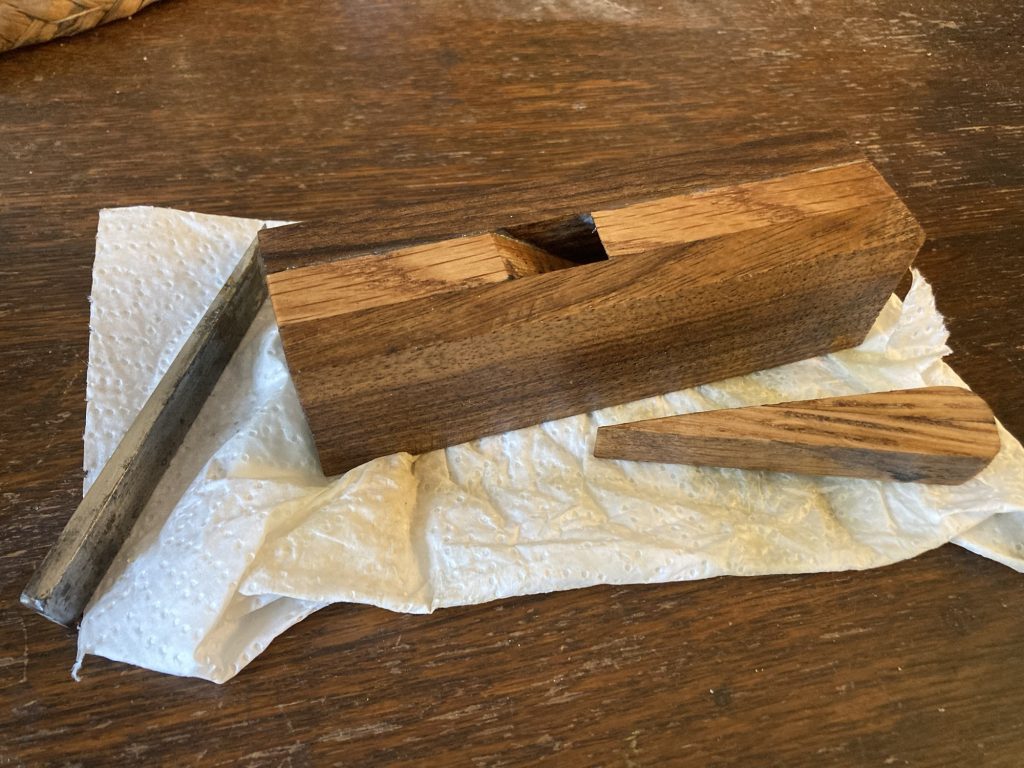

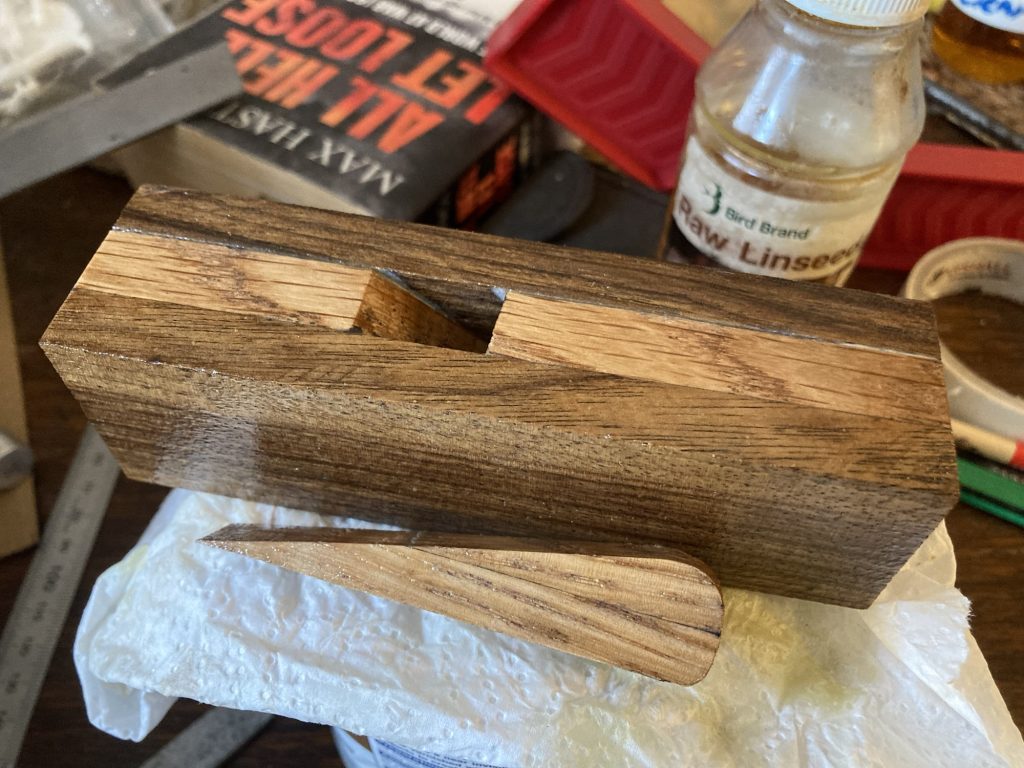

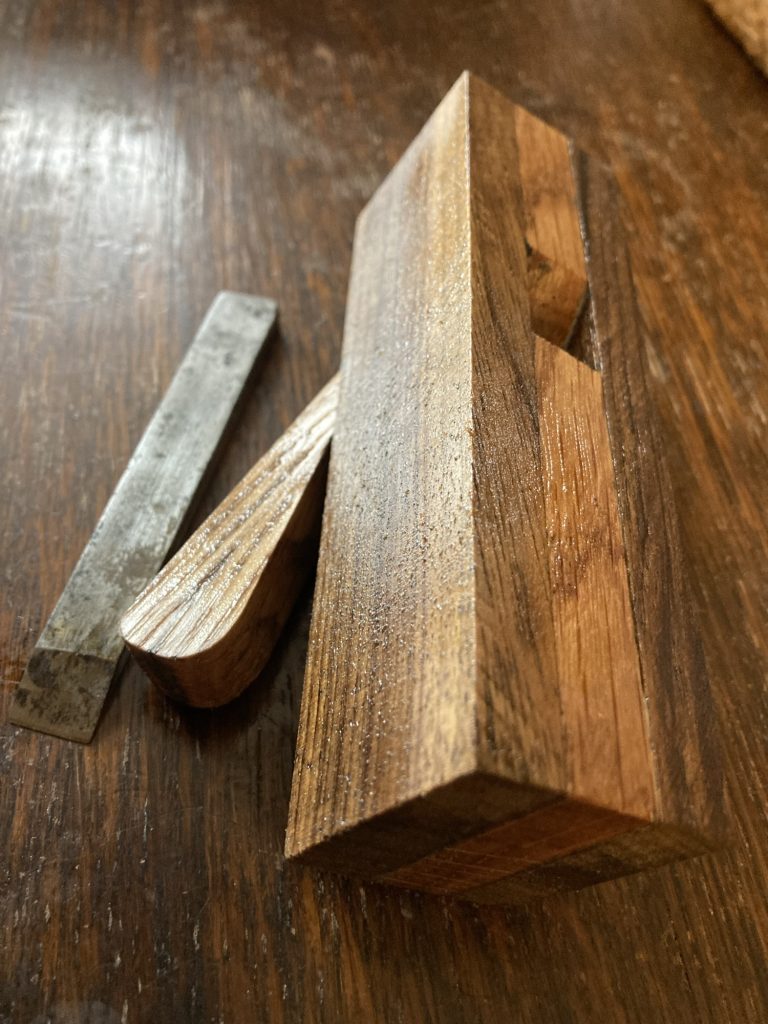

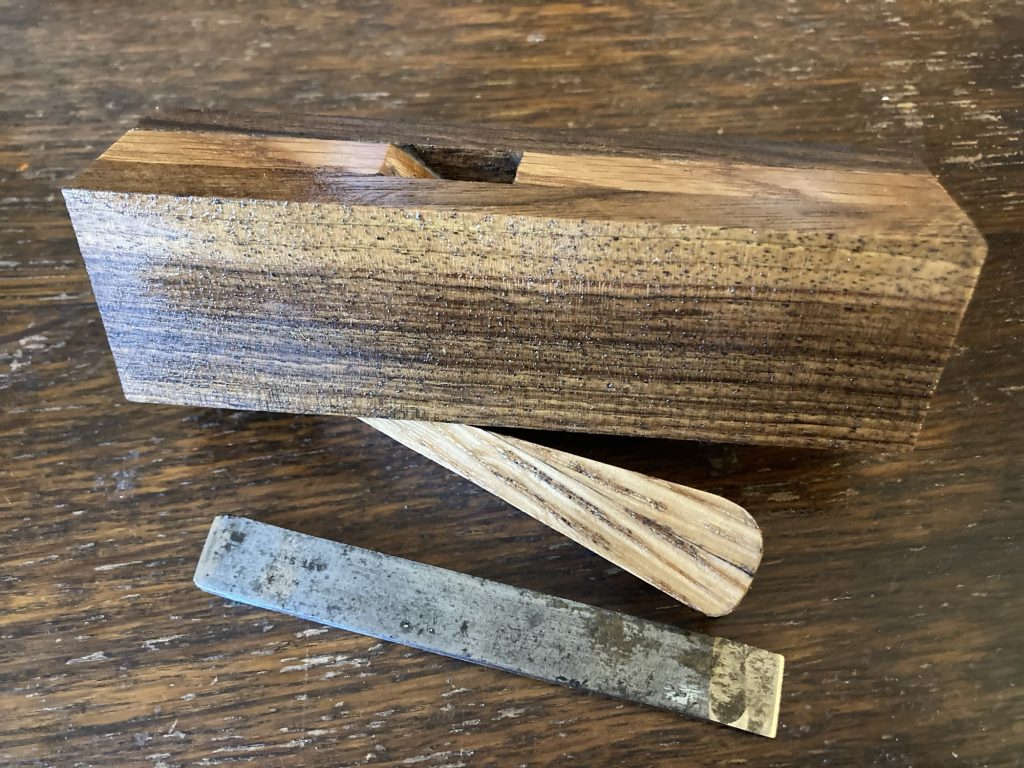

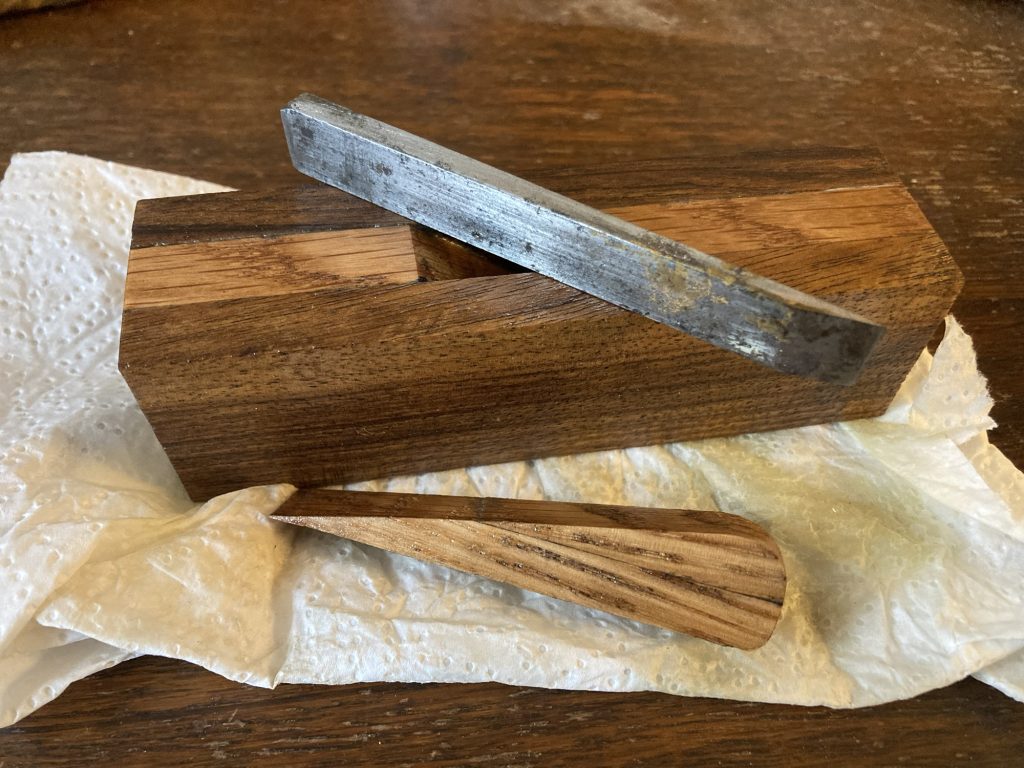

The plane is basically dimensioned, the iron roughly shaped, and the (?) shaped. I painted some Rustin’s pre-stain on it. Let that dry, a d then put a layer of linseed oil on.

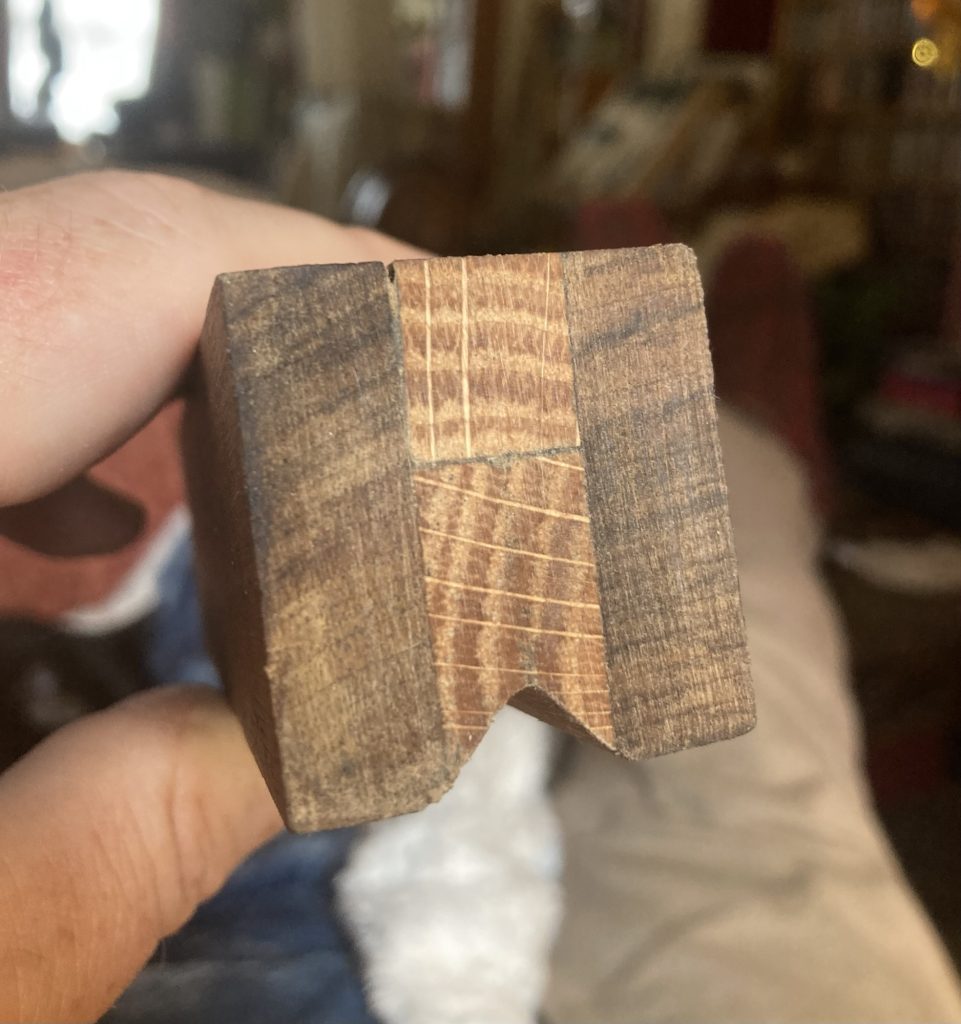

That’s where she’s at for now… The iron doesn’t come all the way through, to the sole. But that’s intentional. I need to cut a triangle in the base, the iron will protrude through, into that right angle, thereby cutting the bevel.

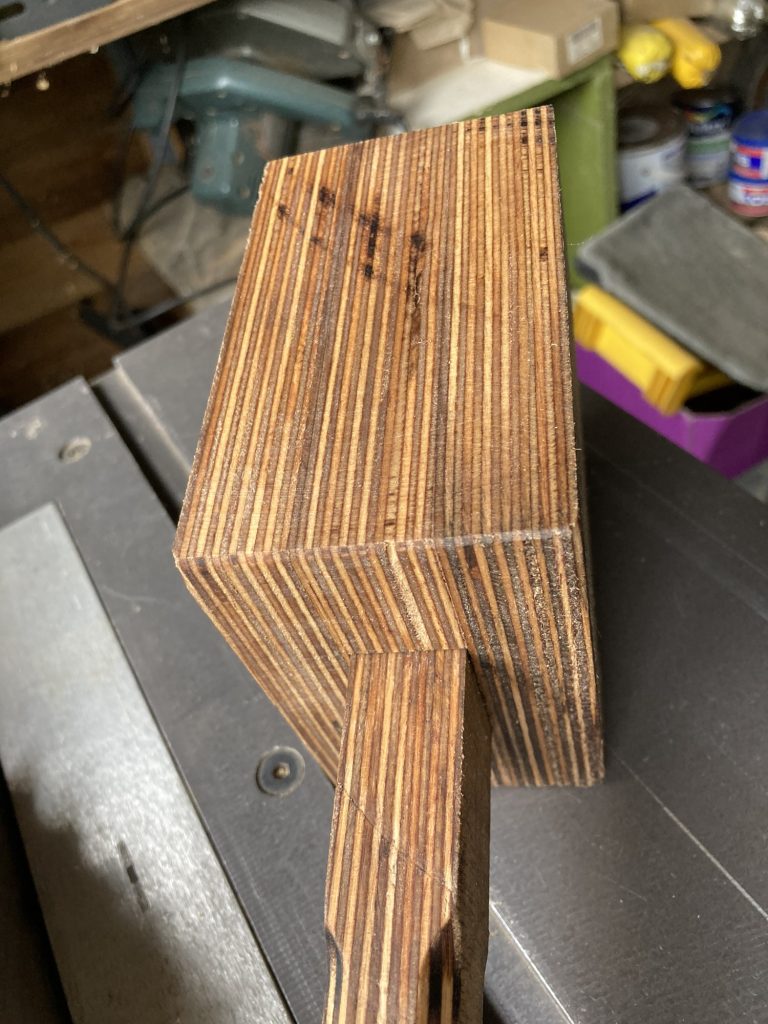

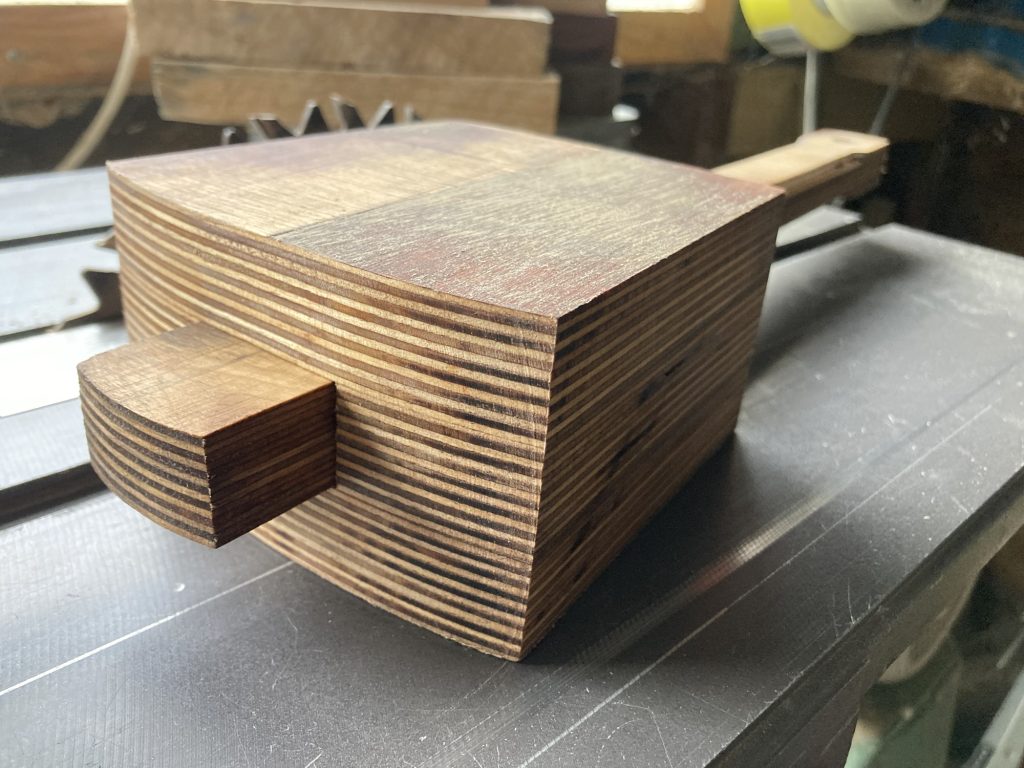

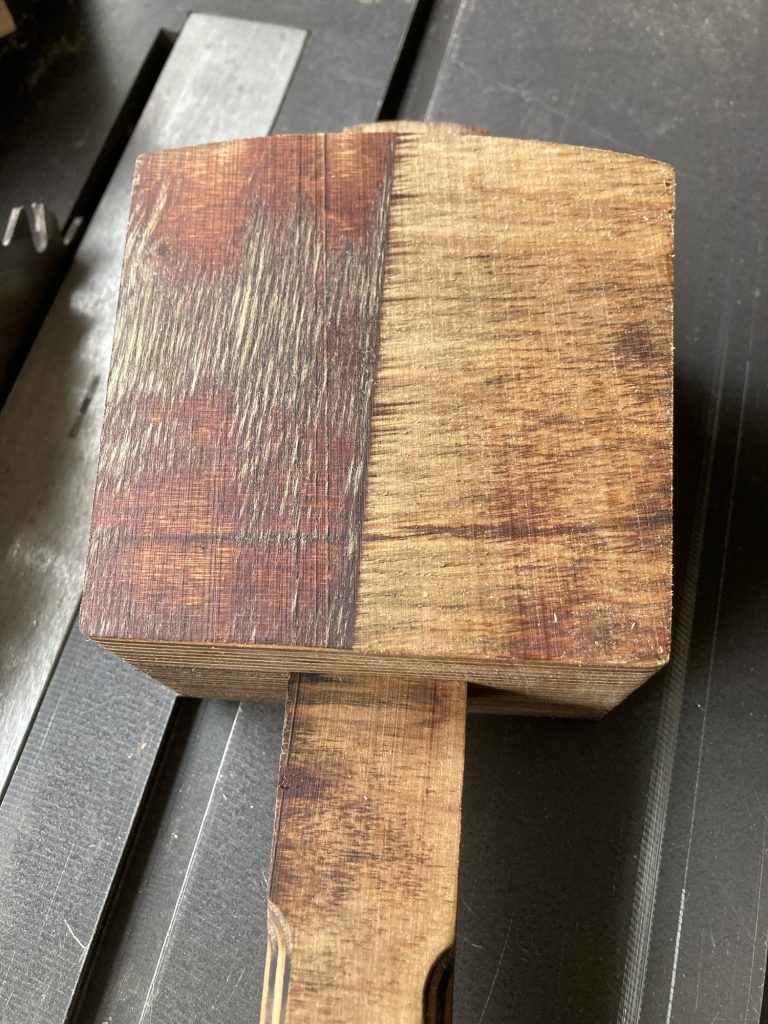

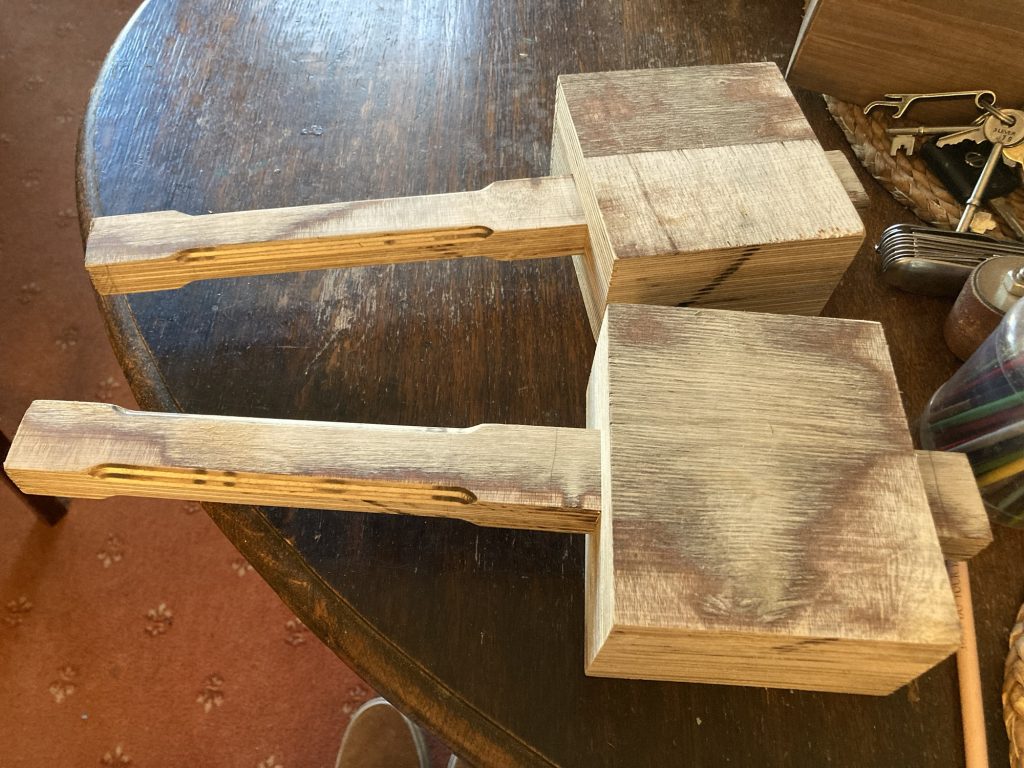

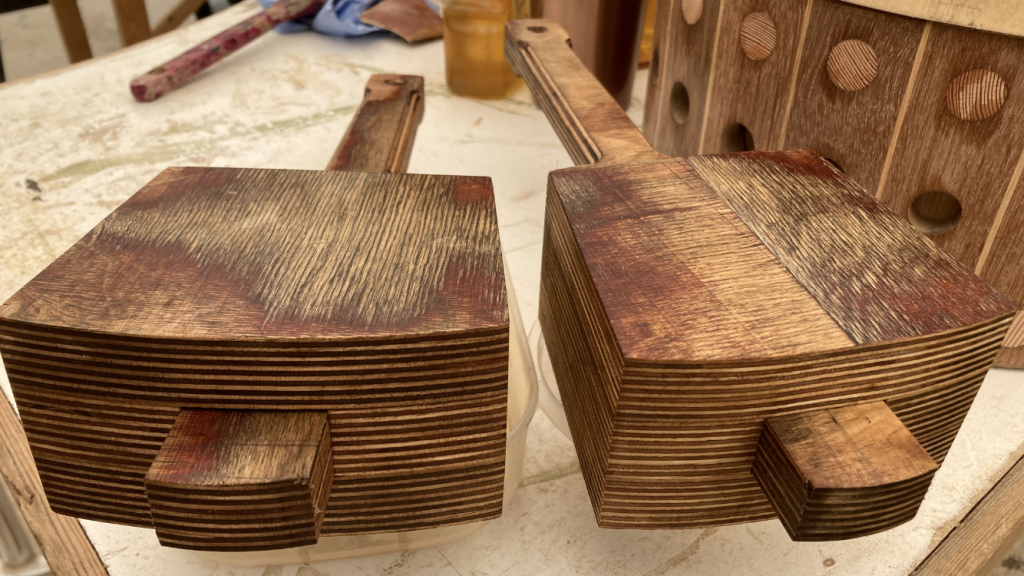

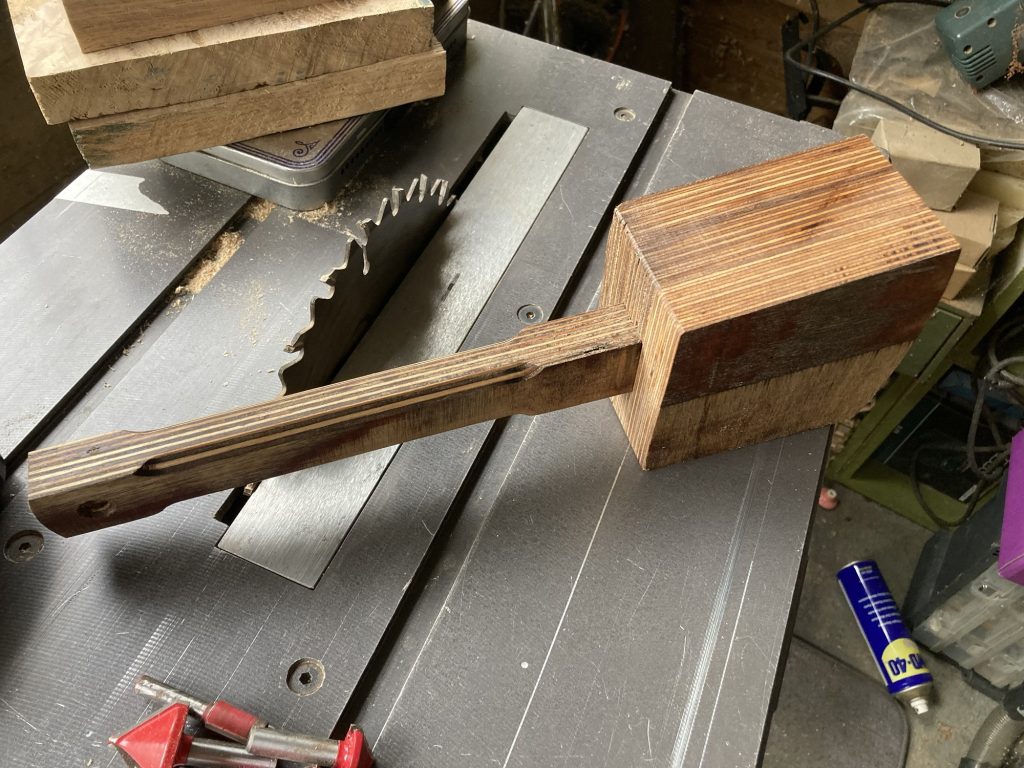

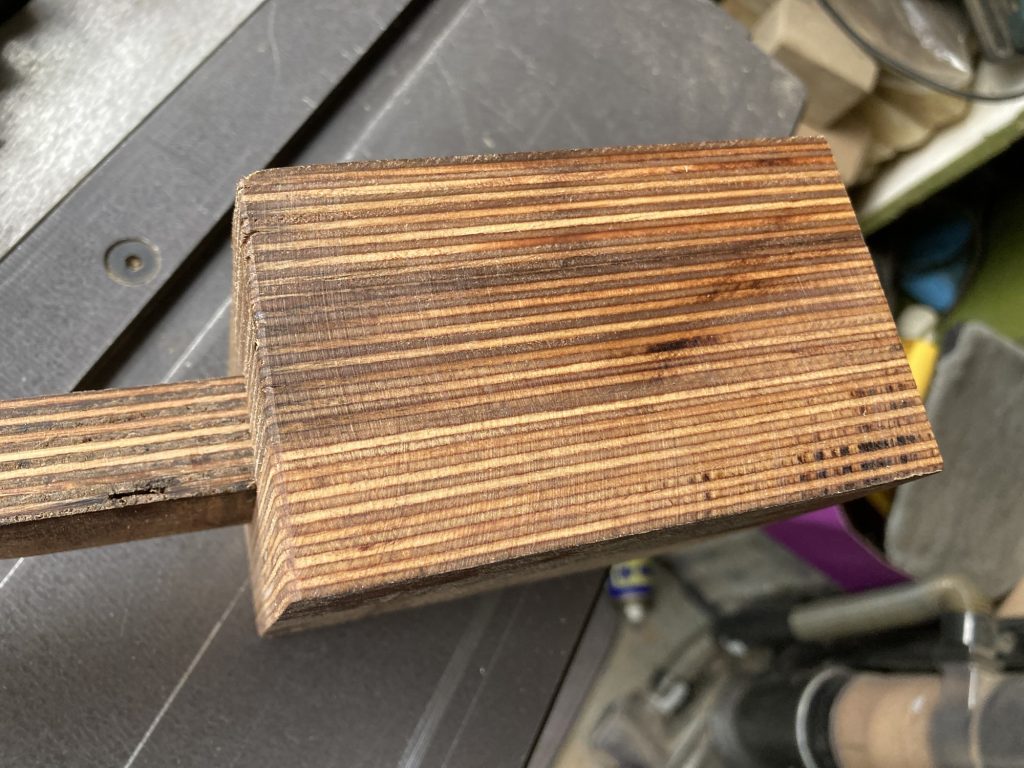

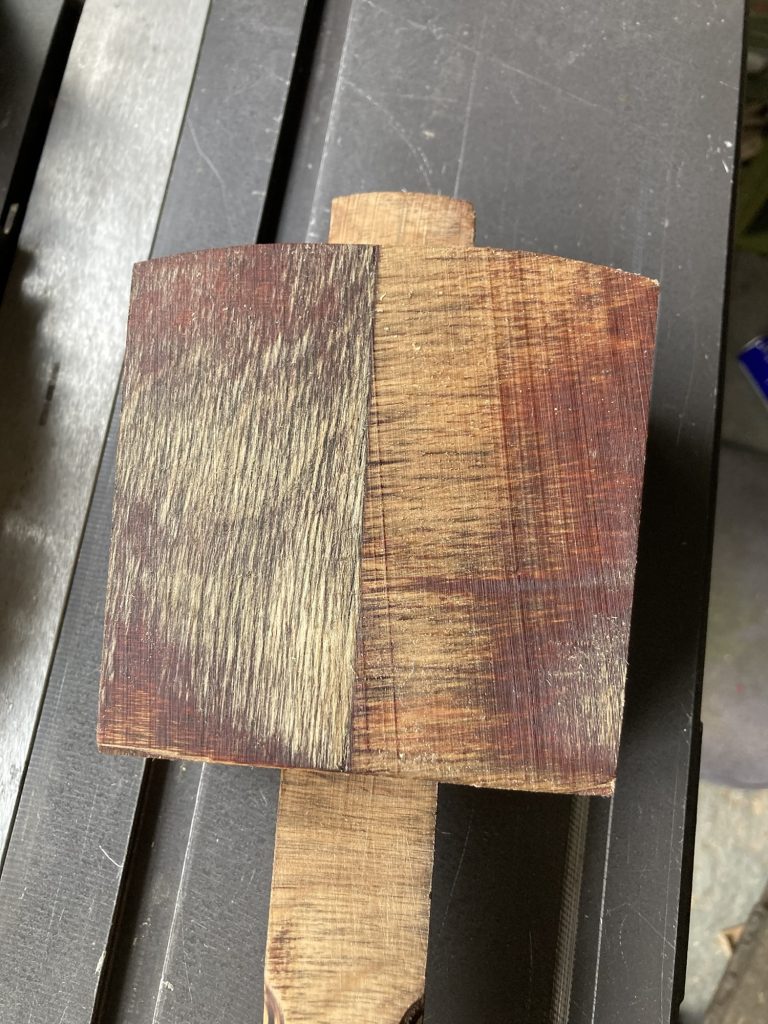

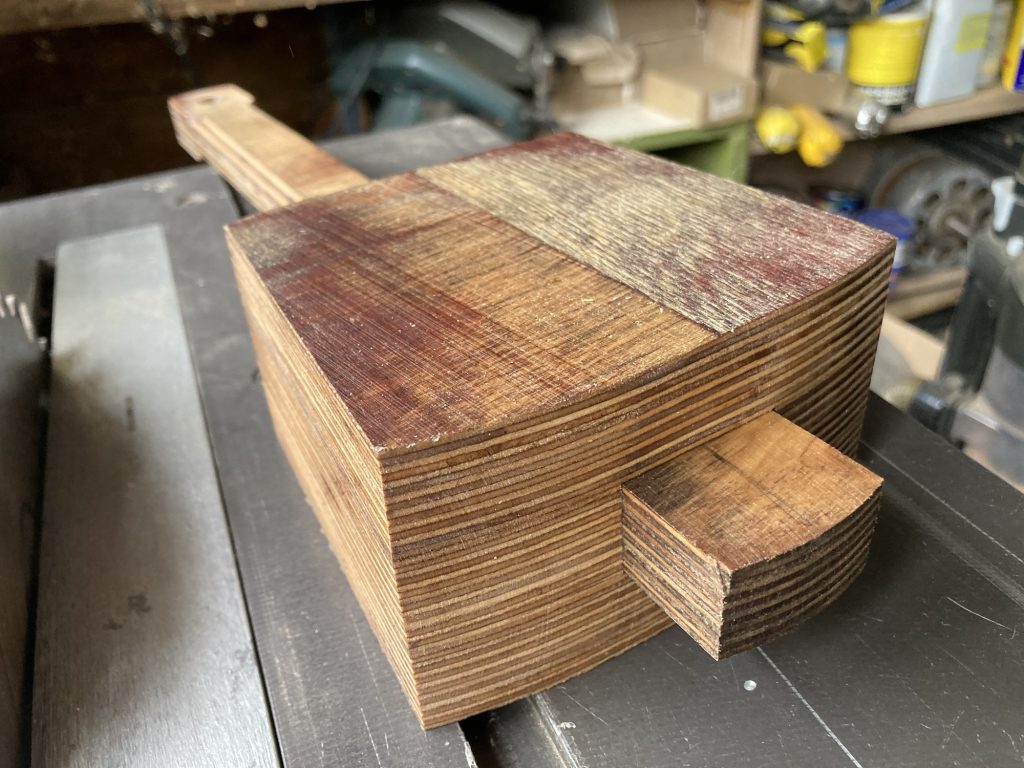

These two marine-ply mallets were finished yesterday, at S&F. I put two coats of teak oil on. Boy, does that stuff smell!

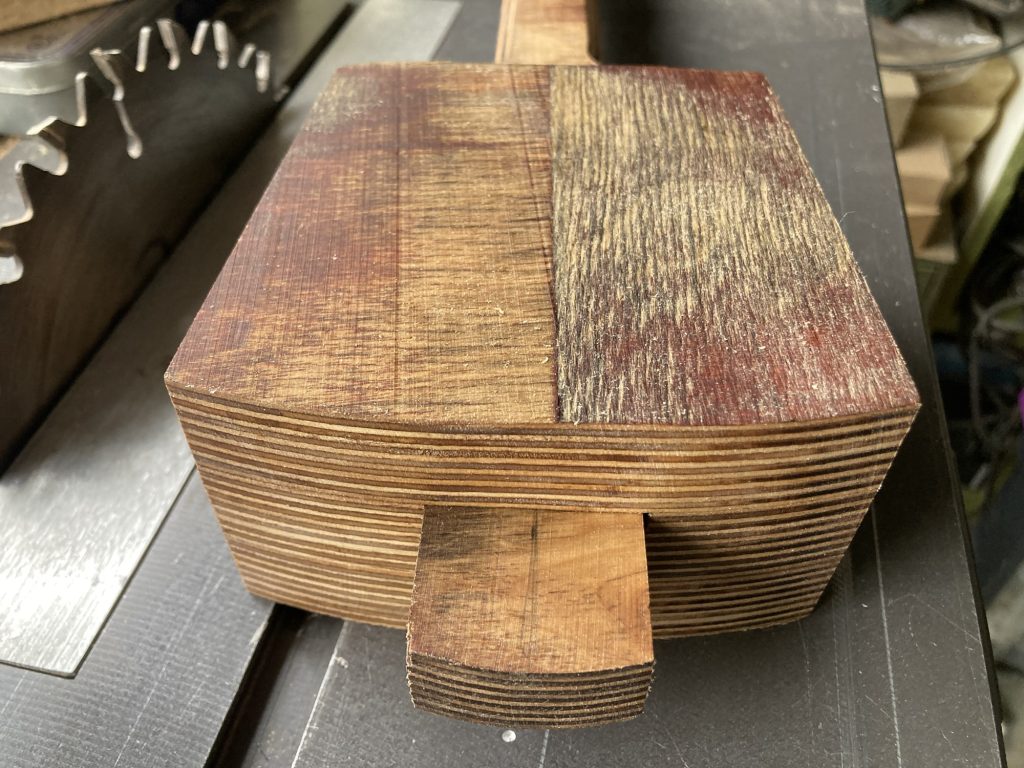

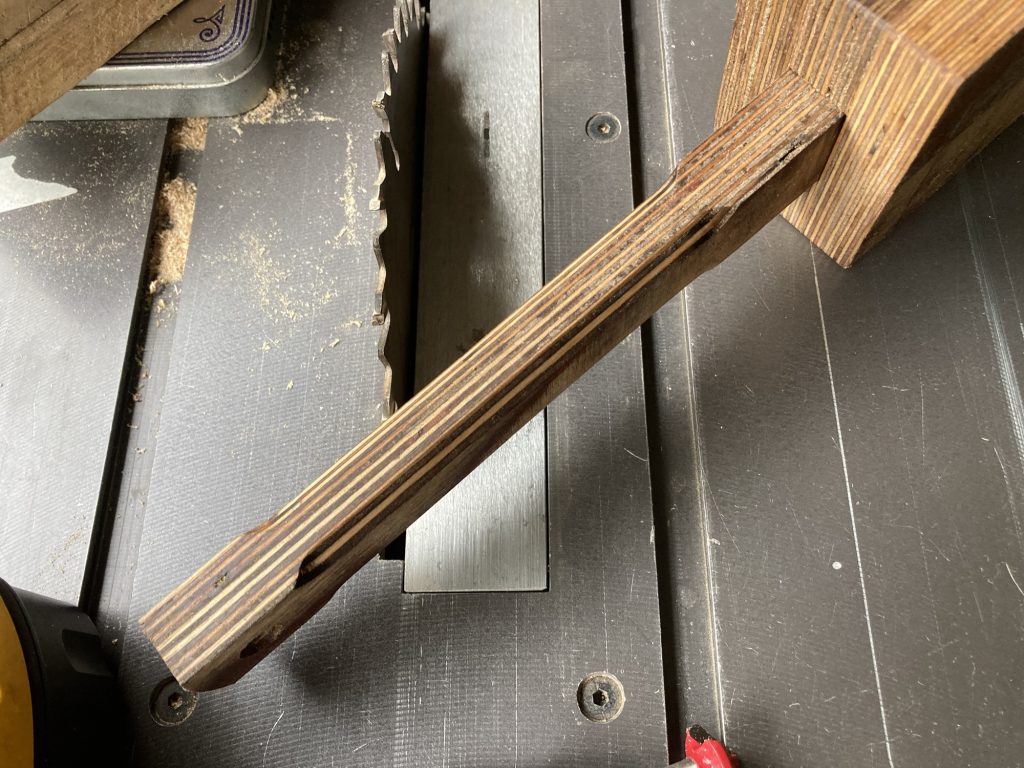

This gallery of images, above, was taken back home, on my Kity table saw. I’m pretty chuffed with how these have come out.

I’ll keep one, the other being for Yanni Papastavrou, who requested a mallet on seeing my recent oak one.

I posted about my new oak mallet on FB. And, to my surprise, a pal said it gave him ‘mallet envy’; could I make him one? As I haven’t got enough oak left, I’m trying out marine-ply.

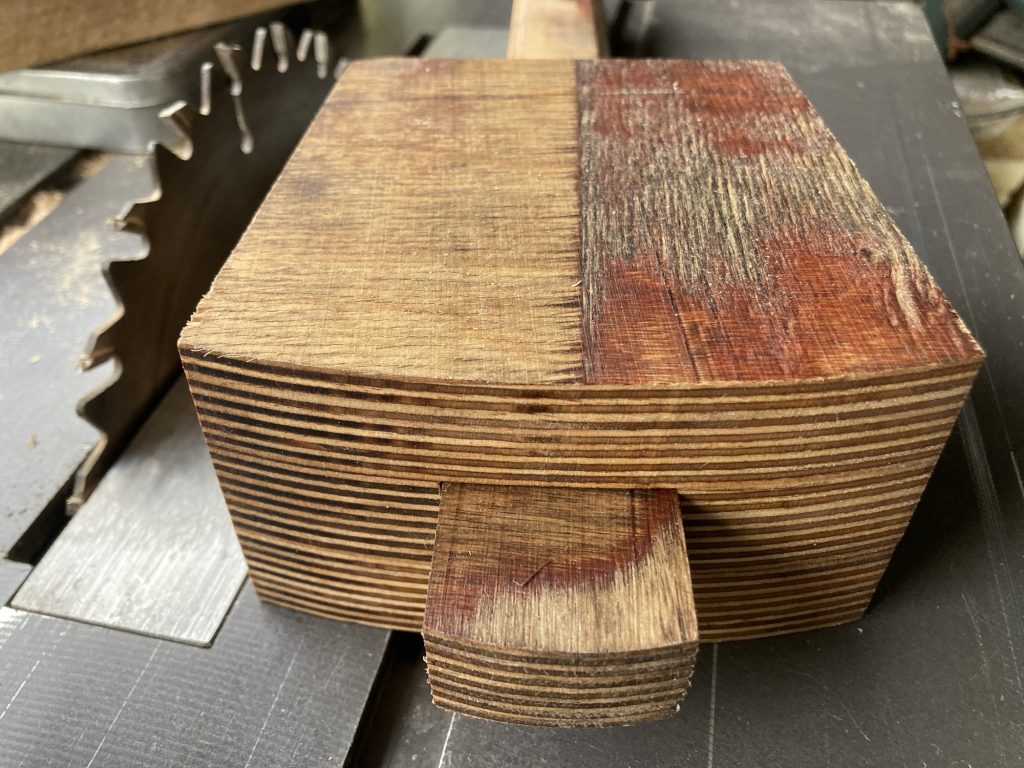

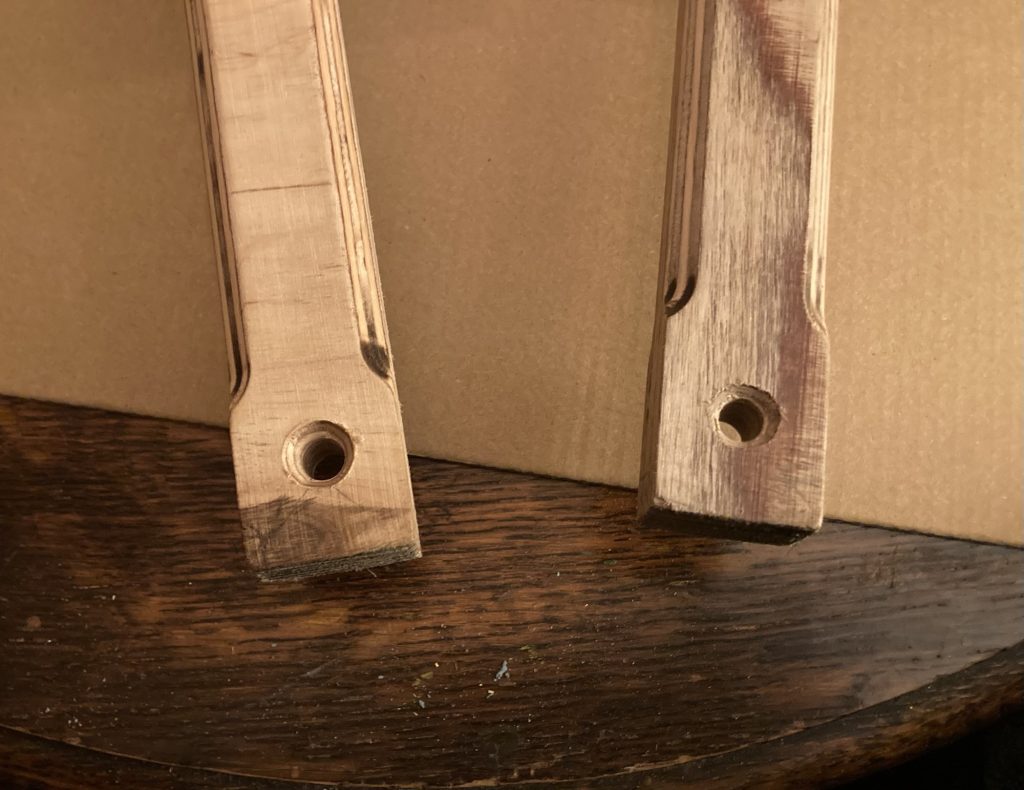

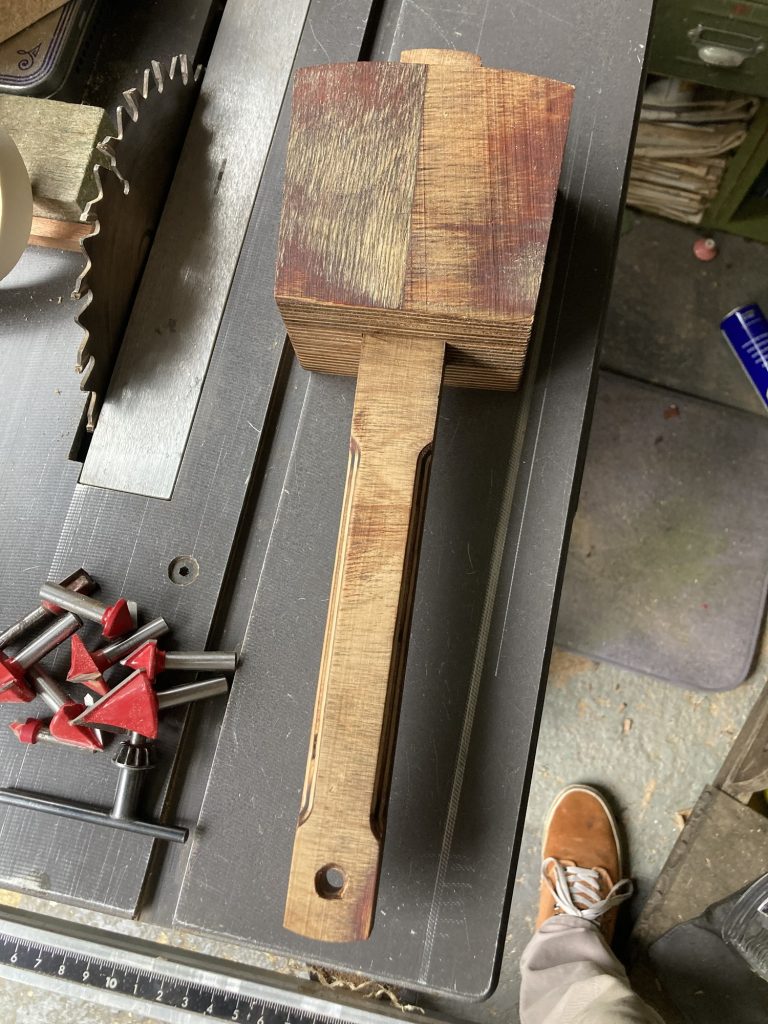

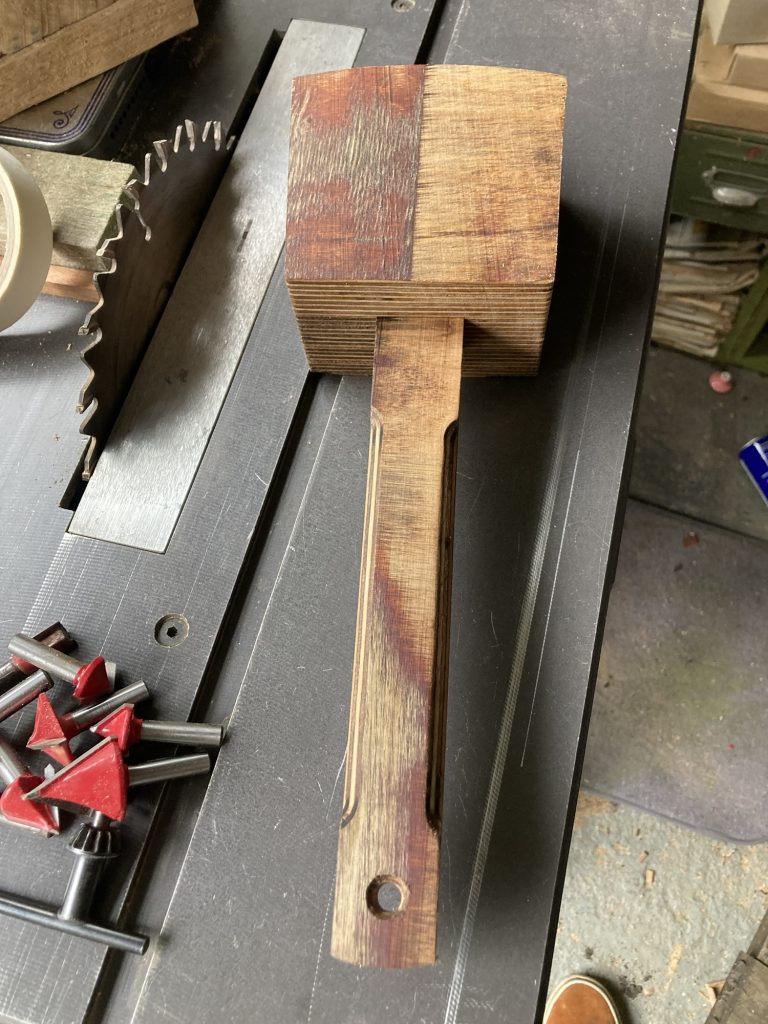

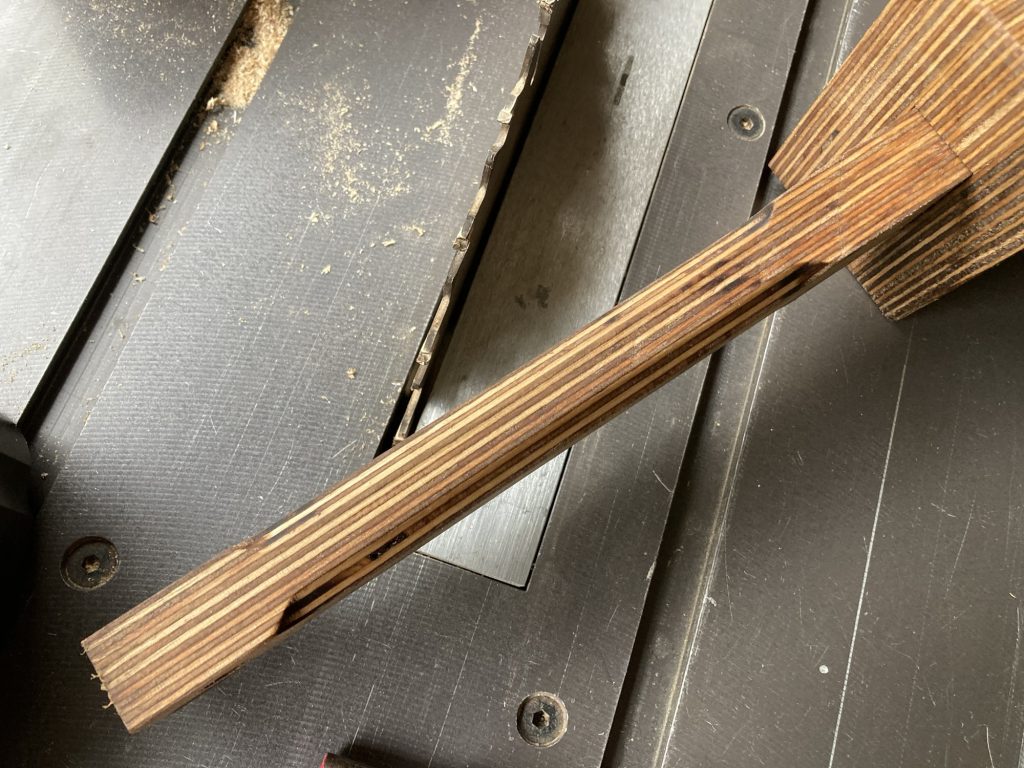

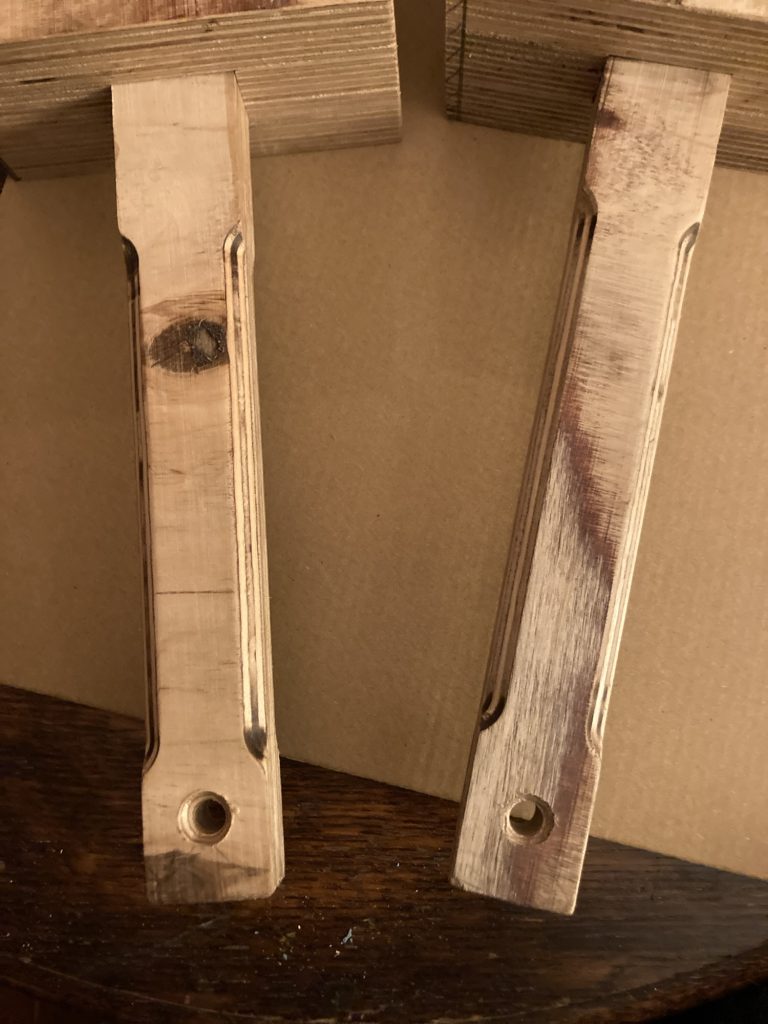

I bought a Katsu brand palm-router, from Amazon. For just £40! It arrived today. And I used it to shape the handles, as shown in the pics above and below.

Burn marks need sanding out. But other than that, it did exactly what I wanted. Result! One minor bummer is that a set of new router bits I recently bought don’t fit. But that’s another story…

Tomorrow, at S&F, I’m intending to finish (or near enough finish) these two, by shaping the heads, sanding the whole lot, and applying some kind of finish. Linseed oil and paste wax, prob’. If I can source some?

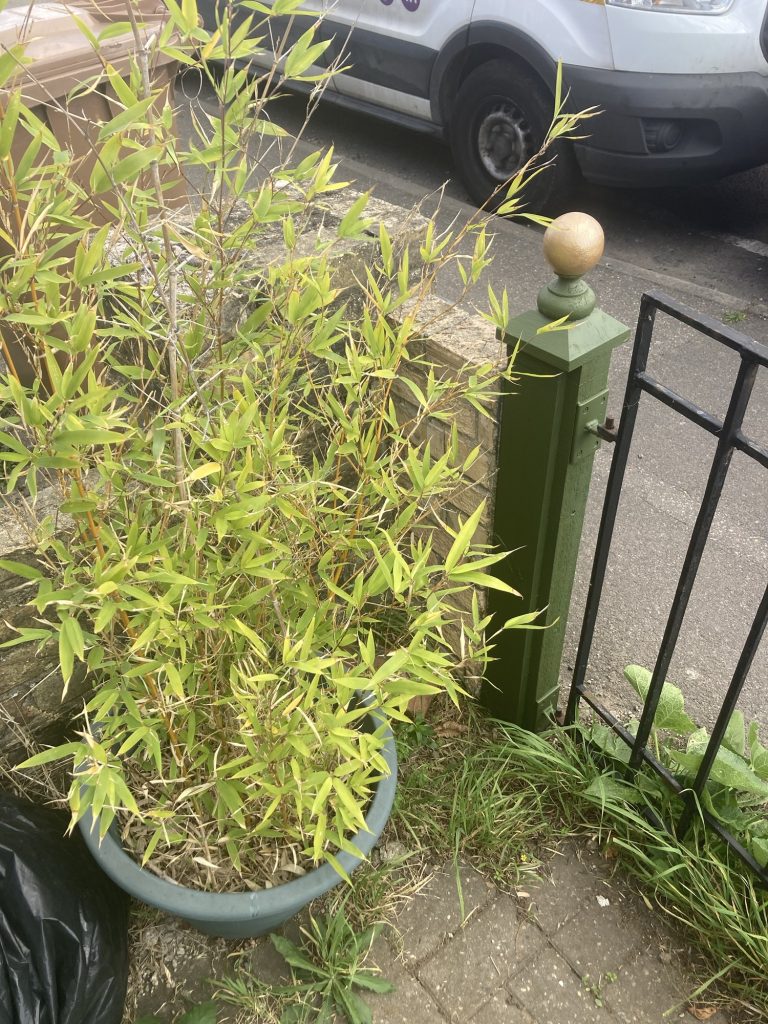

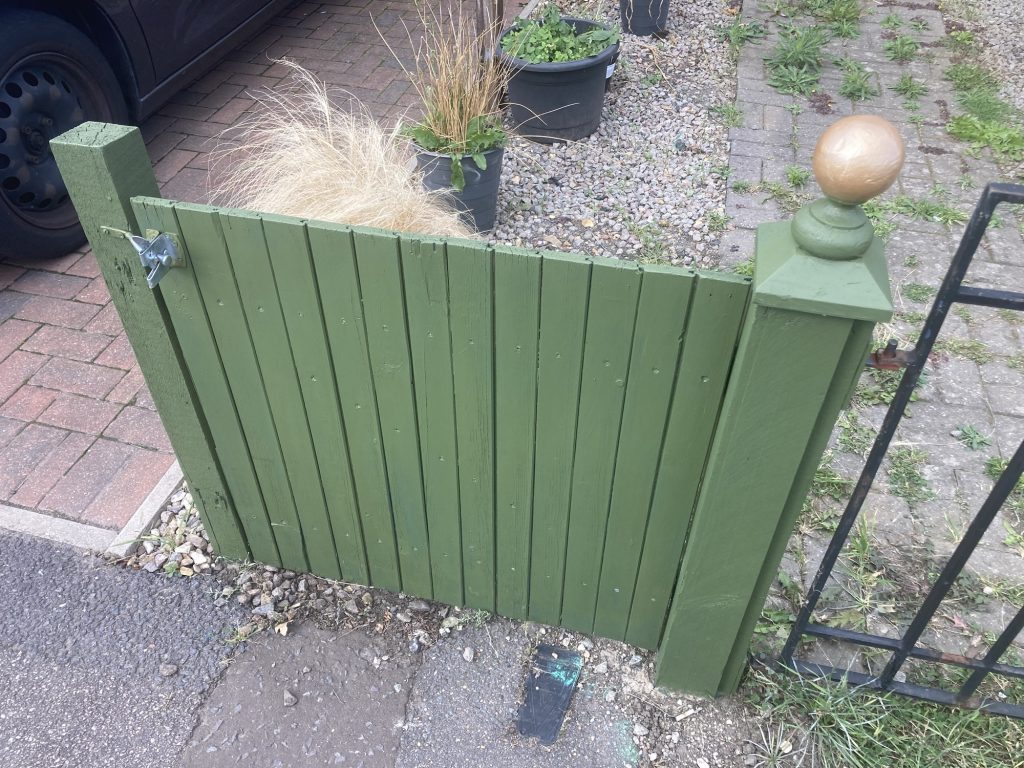

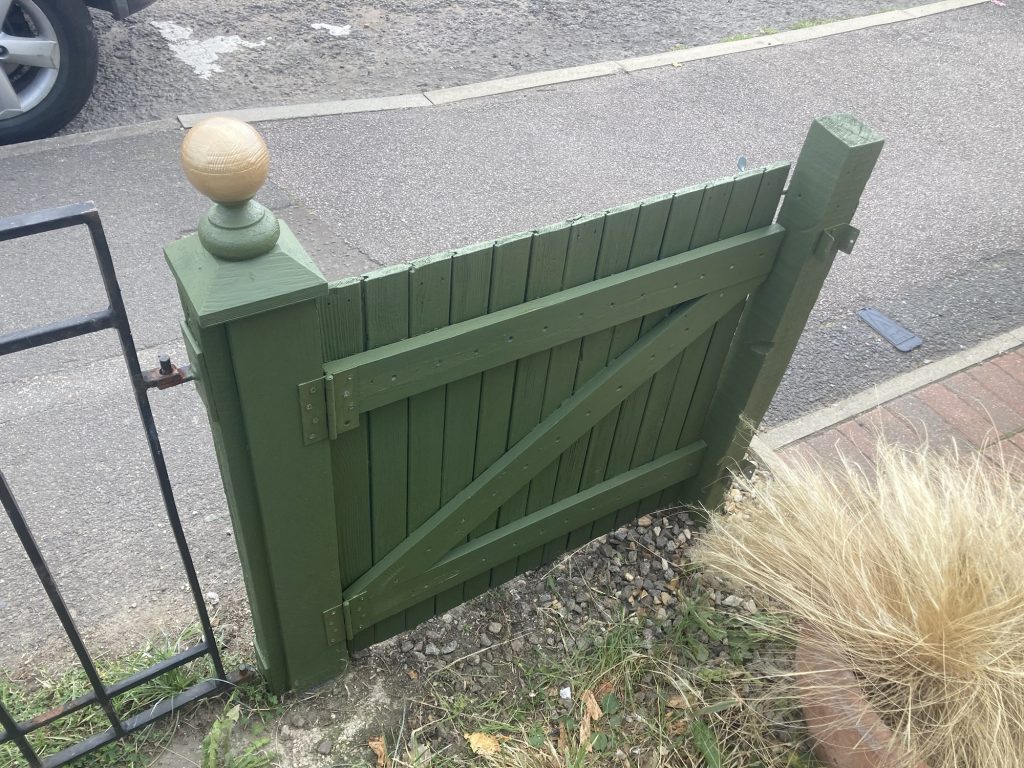

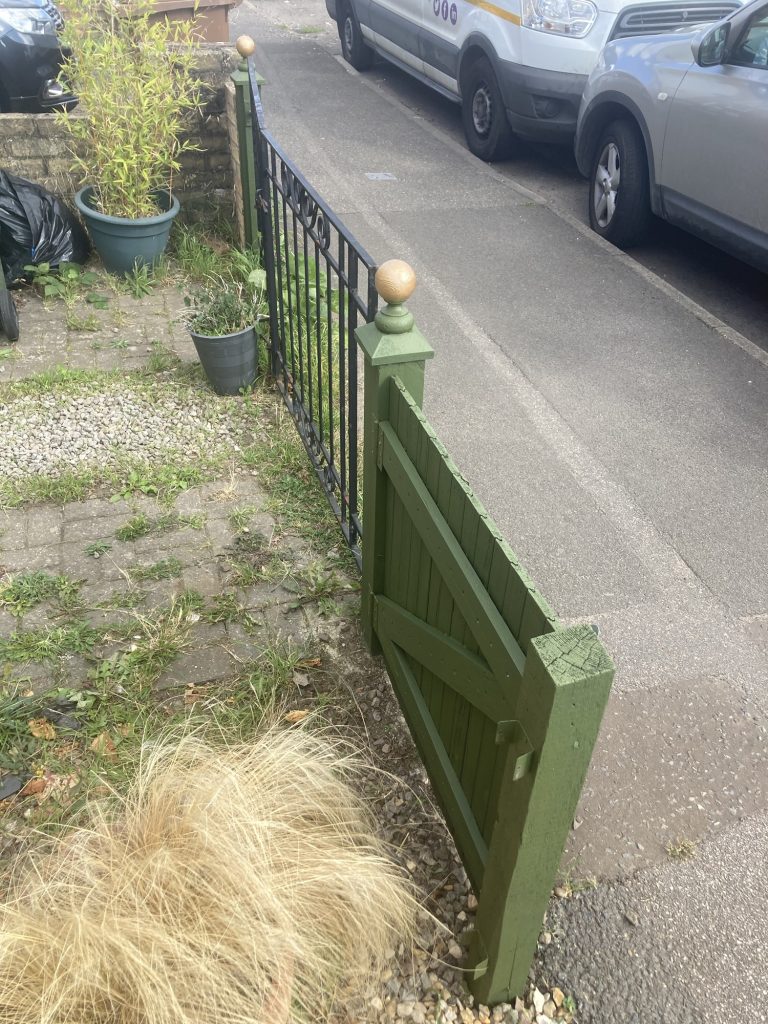

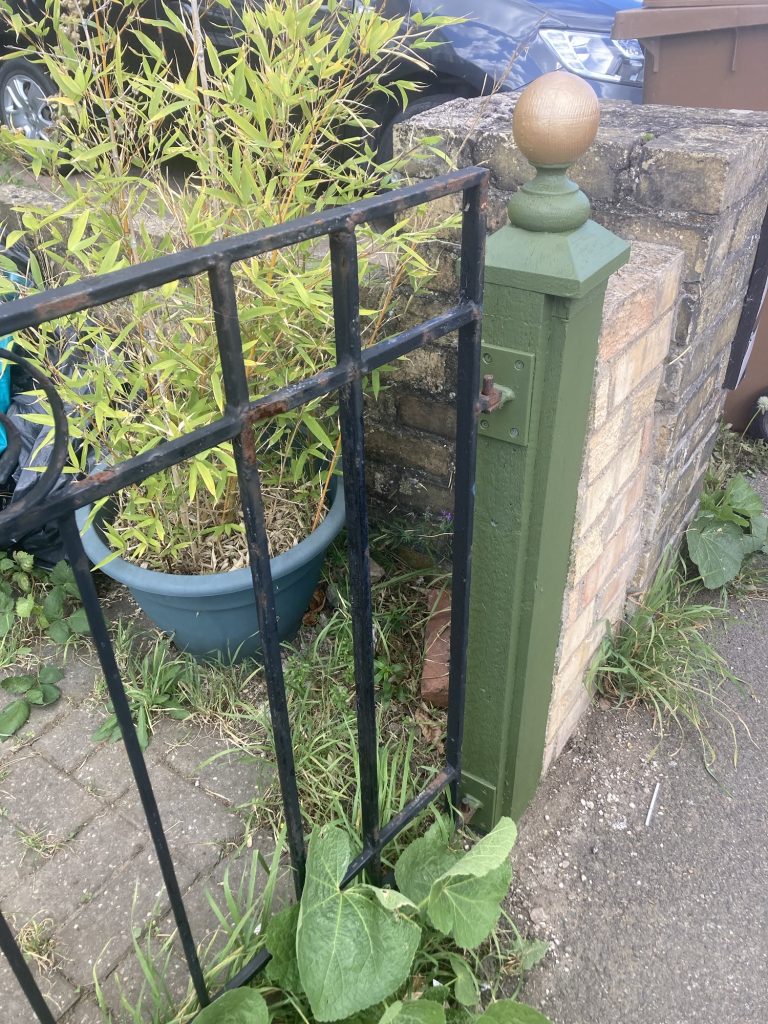

The front gate and gate-posts were looking a bit tired and tatty. I’d painted the balls gold, some while ago. But I’d not addressed the sorry state of the blue main coat.

So I did that today. I found a full/unused sample pot of Valspar (B&Q) ‘Mountain Moss’. A green that I rather like. so I used that.

I think it’s a big improvement.

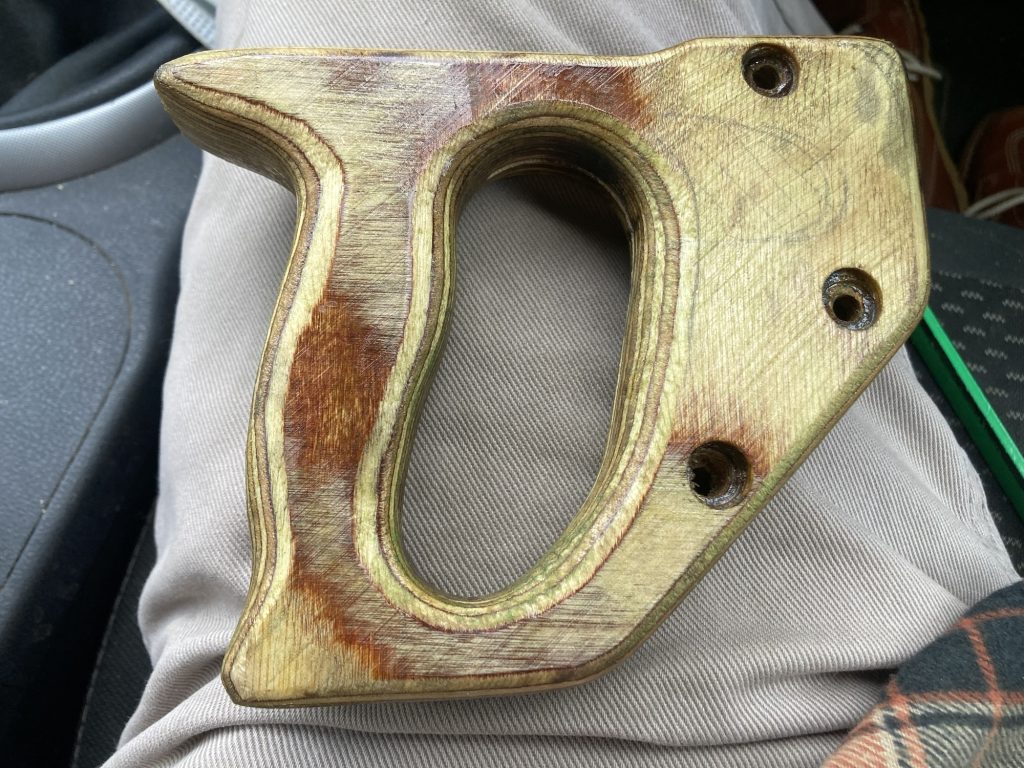

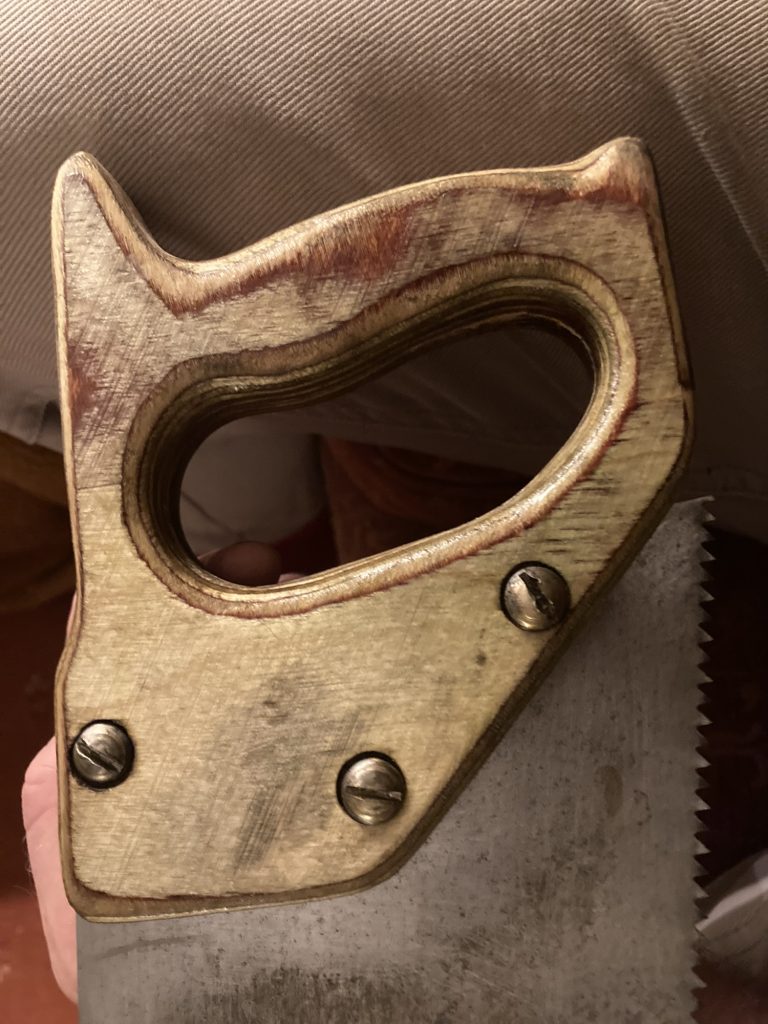

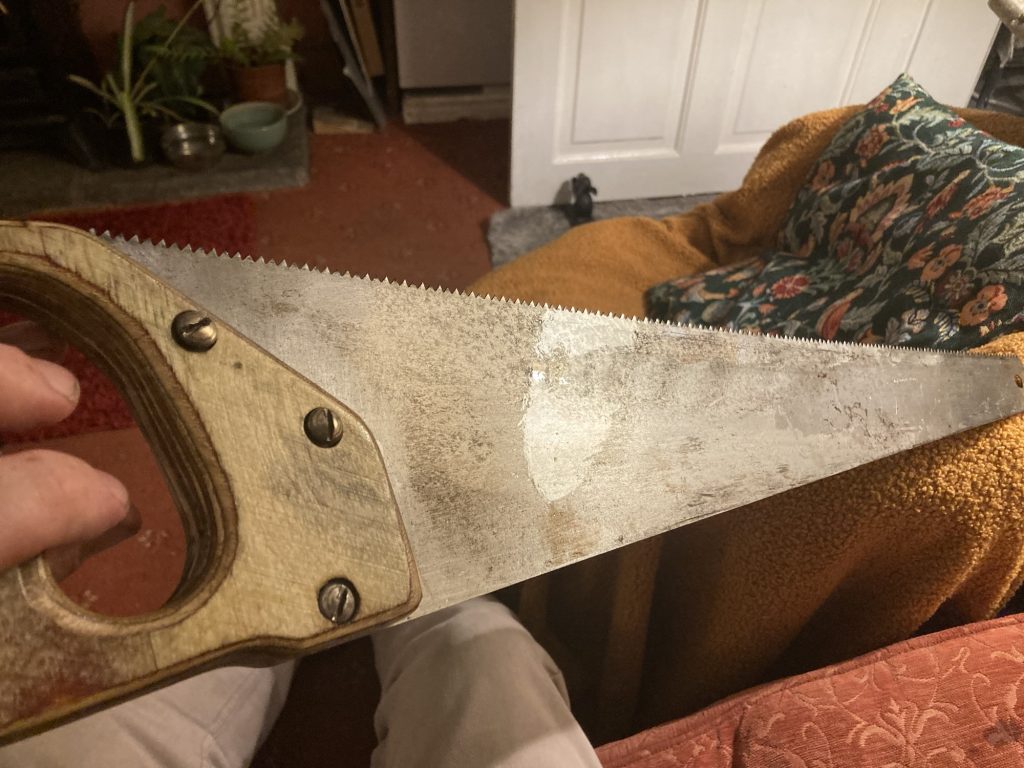

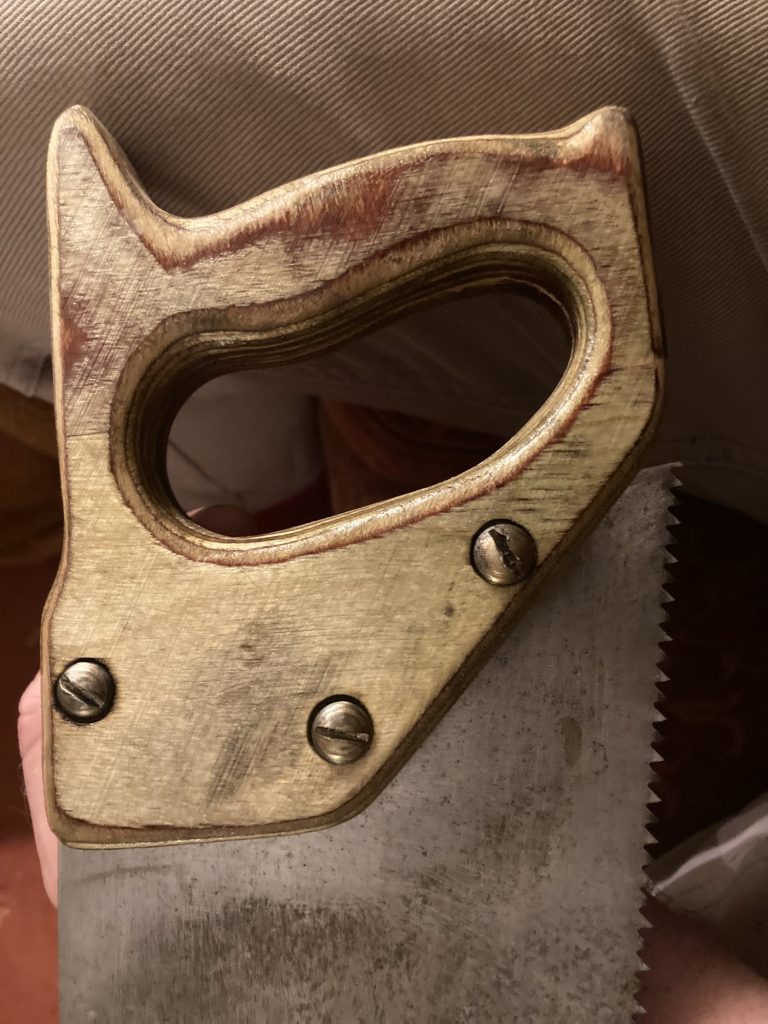

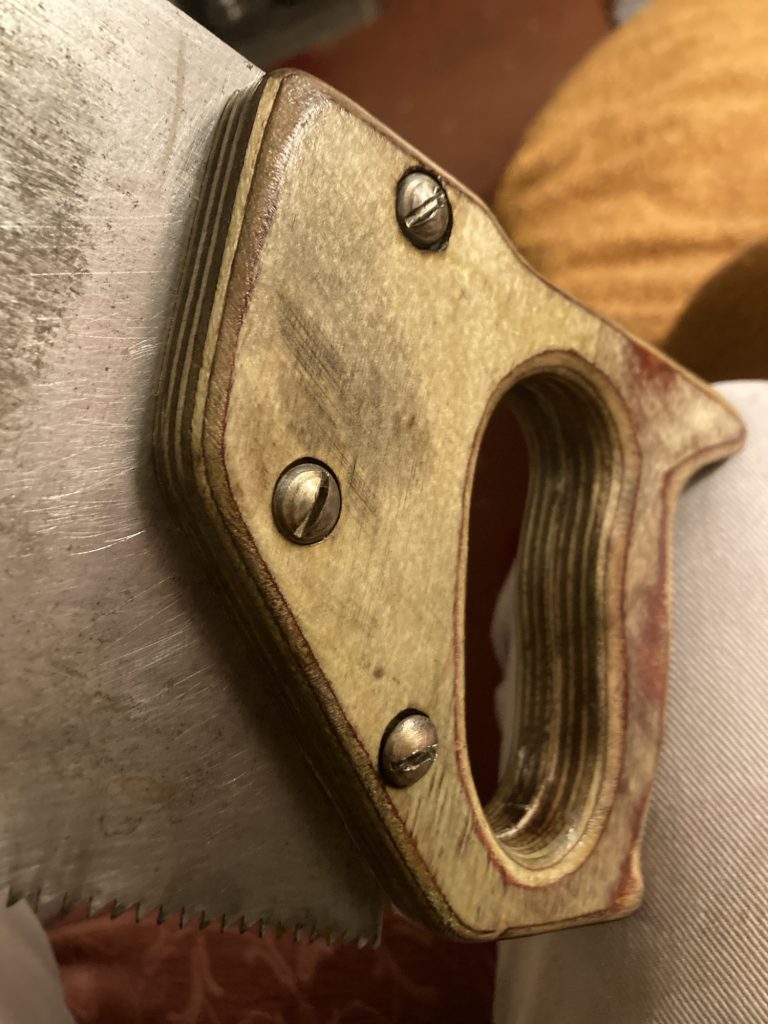

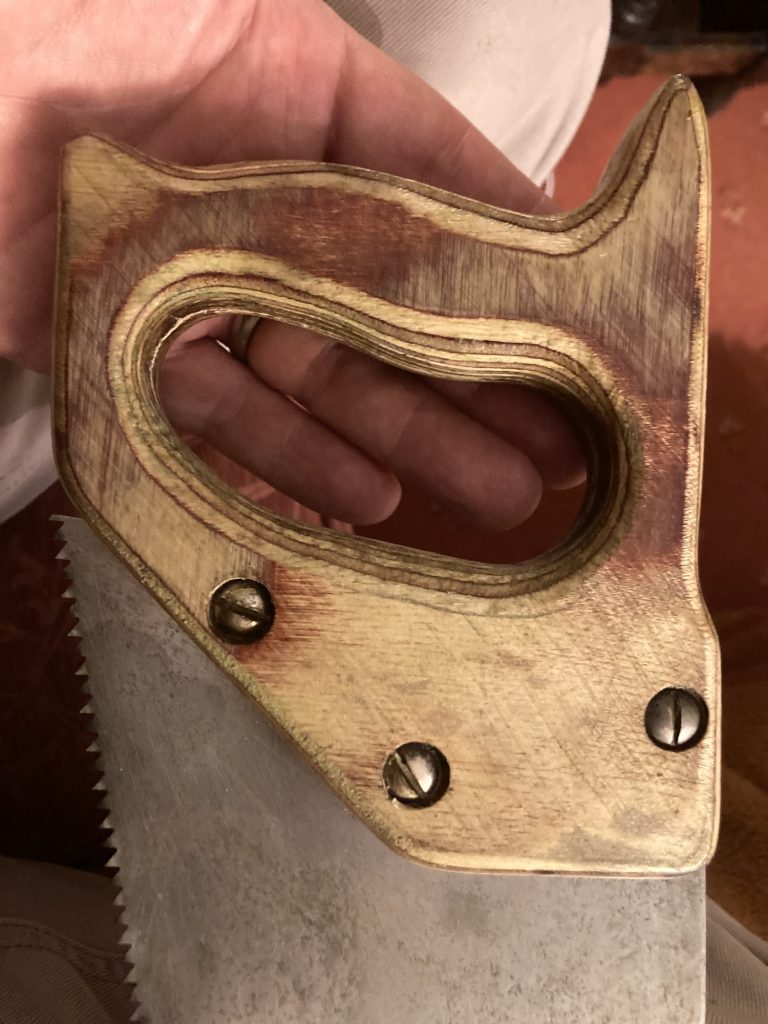

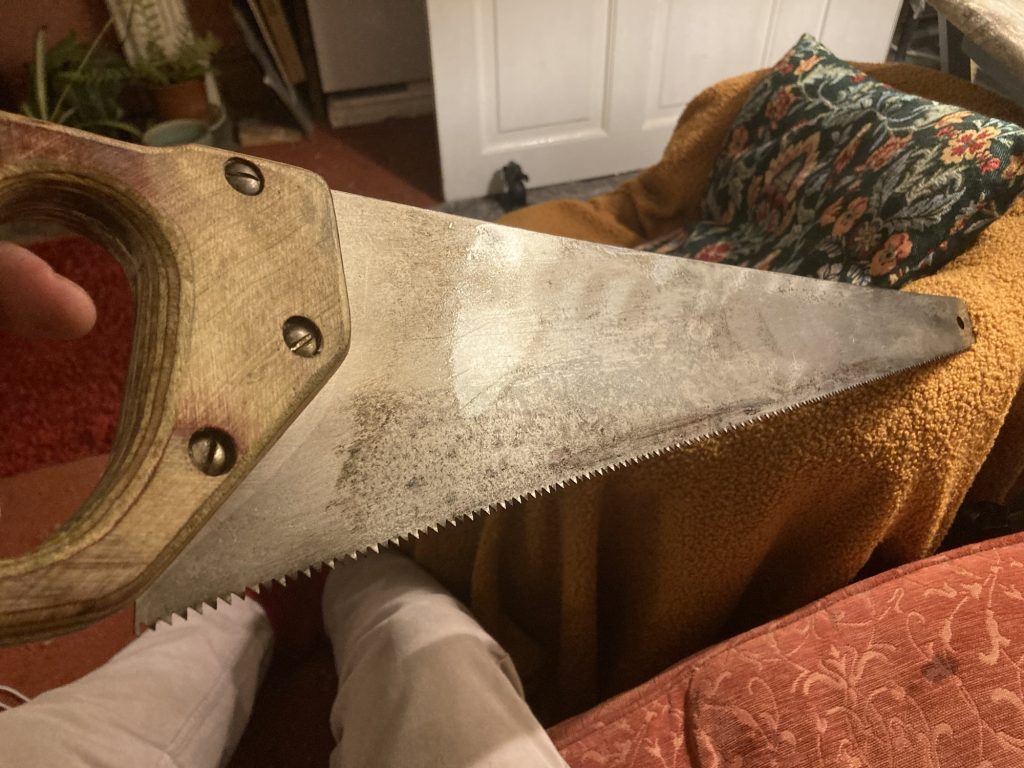

Some years ago the handle for this saw either broke, or I just plain didn’t like it (plastic?). So I made a new one, using marine ply.

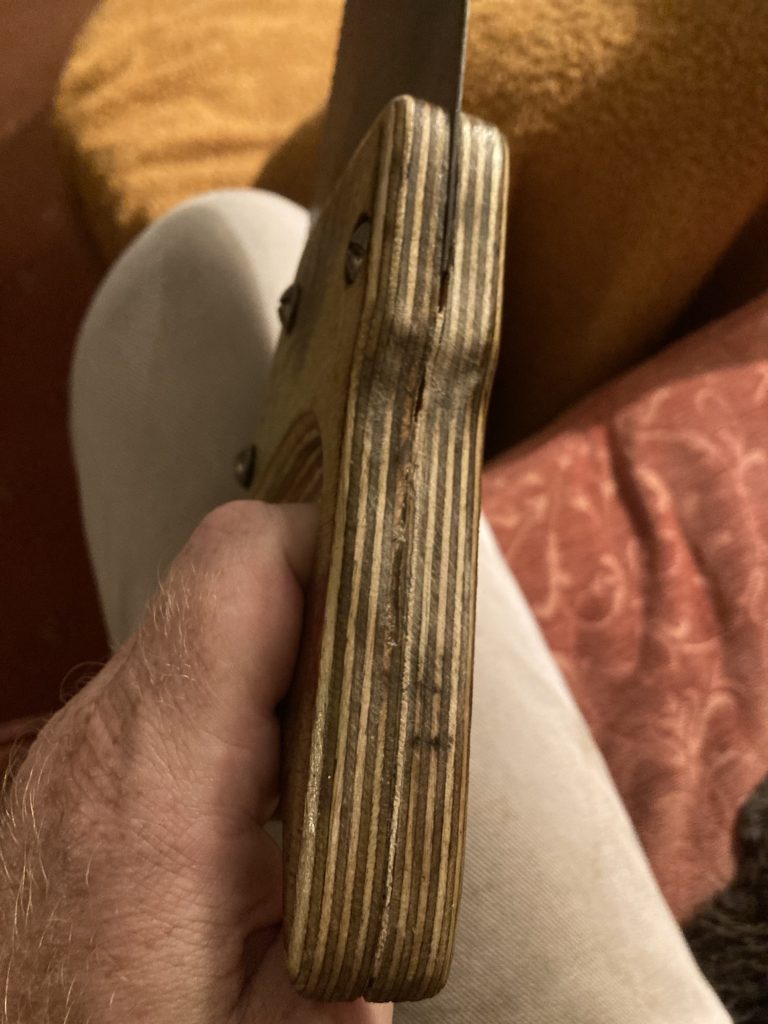

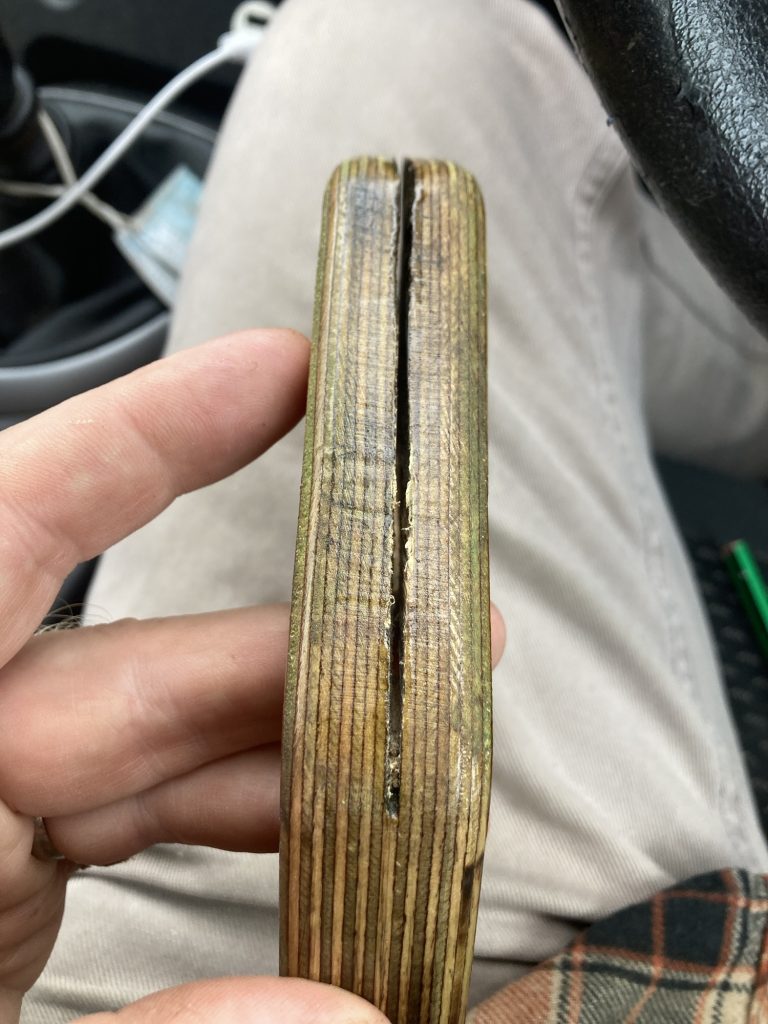

The new handle had several issues: it was way too thick; the groove I cut for the saw blade was way too wide (so much so the blade wasn’t properly secured in the handle); and it was plain ugly, shape wise.

I decided to: shape it a bit more, and thereby improve it aesthetically (even if only a little it!); cut it in half, sand it down, and re-glue it, so the saw blade groove was appropriately sized; and shellac it.

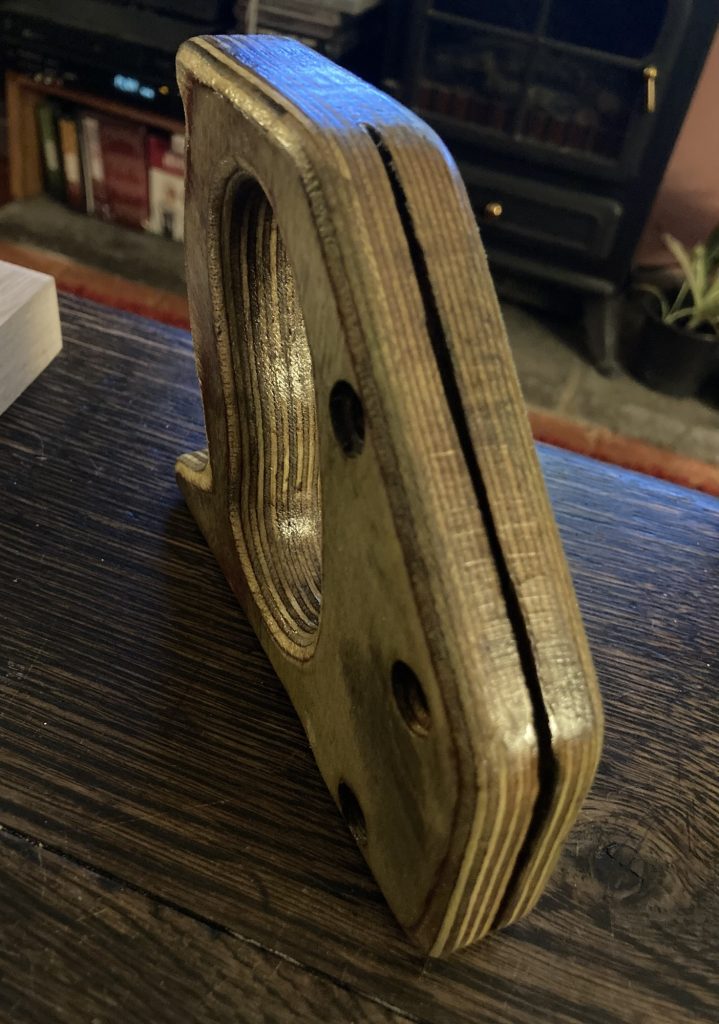

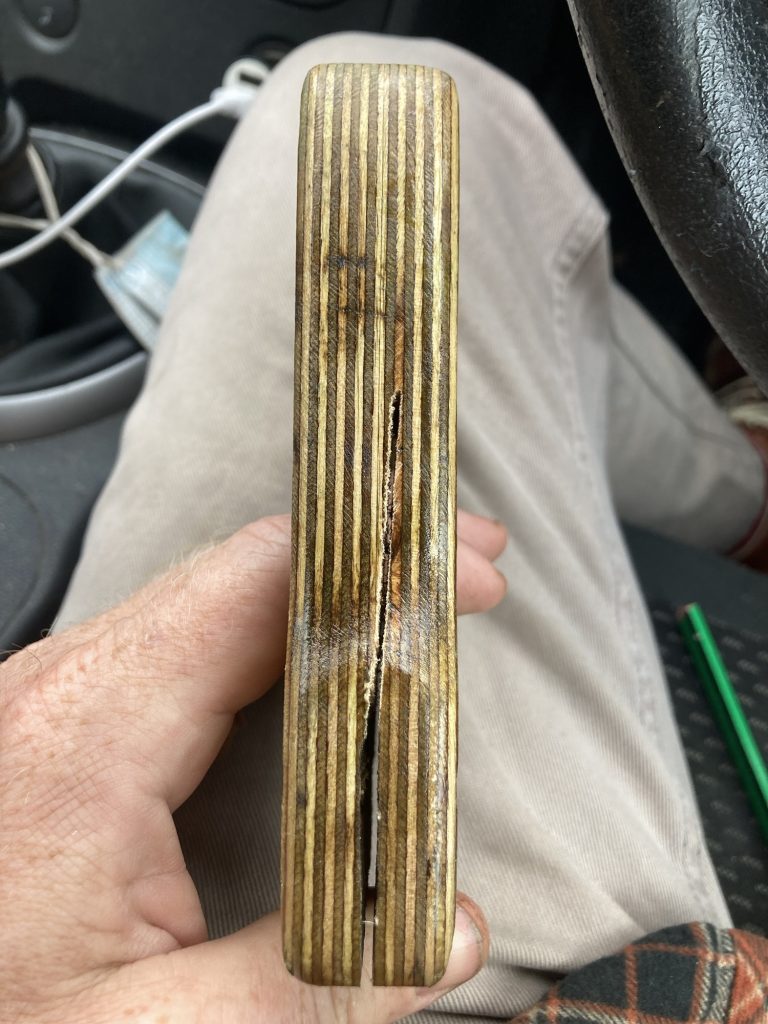

I did the last of these first. Fine. The next step – pics one and two above – went south very quickly. My Japanese pull-saw cut fine, but I wandered off course. So I took the handle to S&F, and cut it in half on their bandsaw.

Sanding the two internal faces brought the whole thing back into the realms of workability. I then had to fill in the wandering cut wound, which I did with a sawdust and wood glue mix.

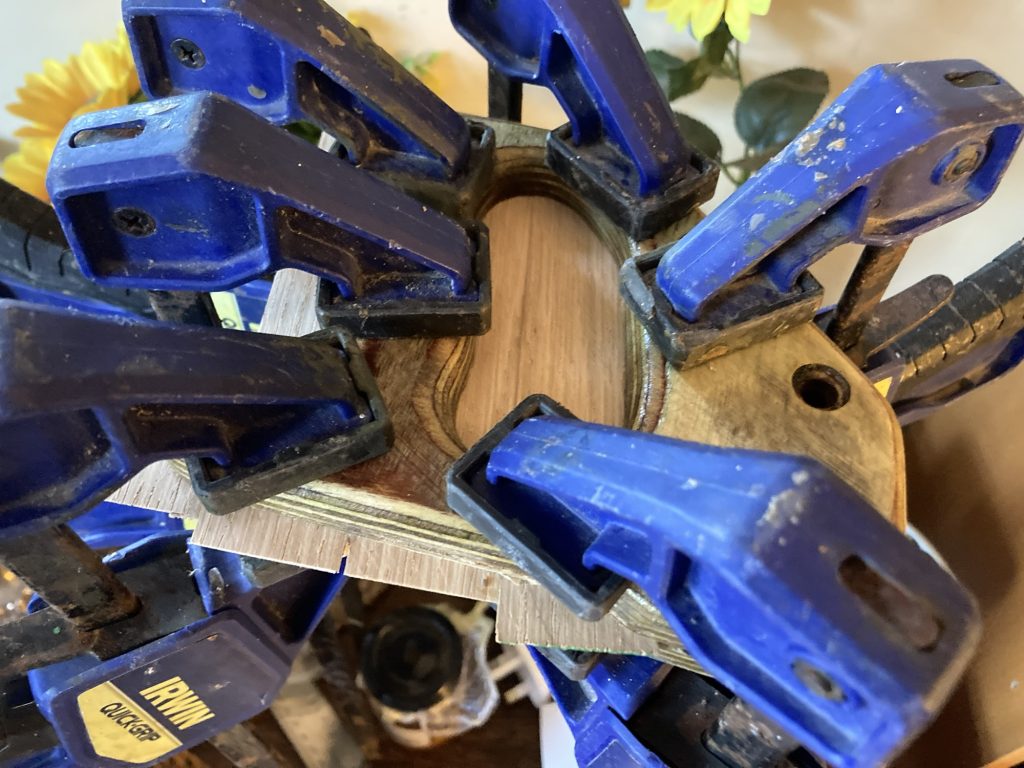

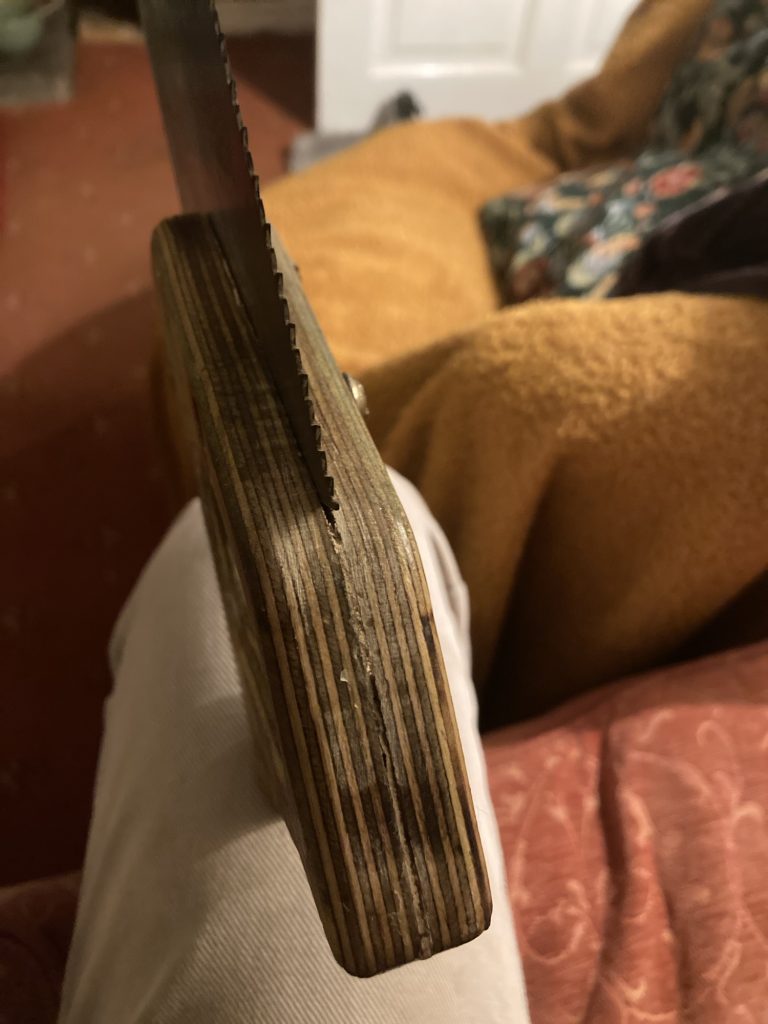

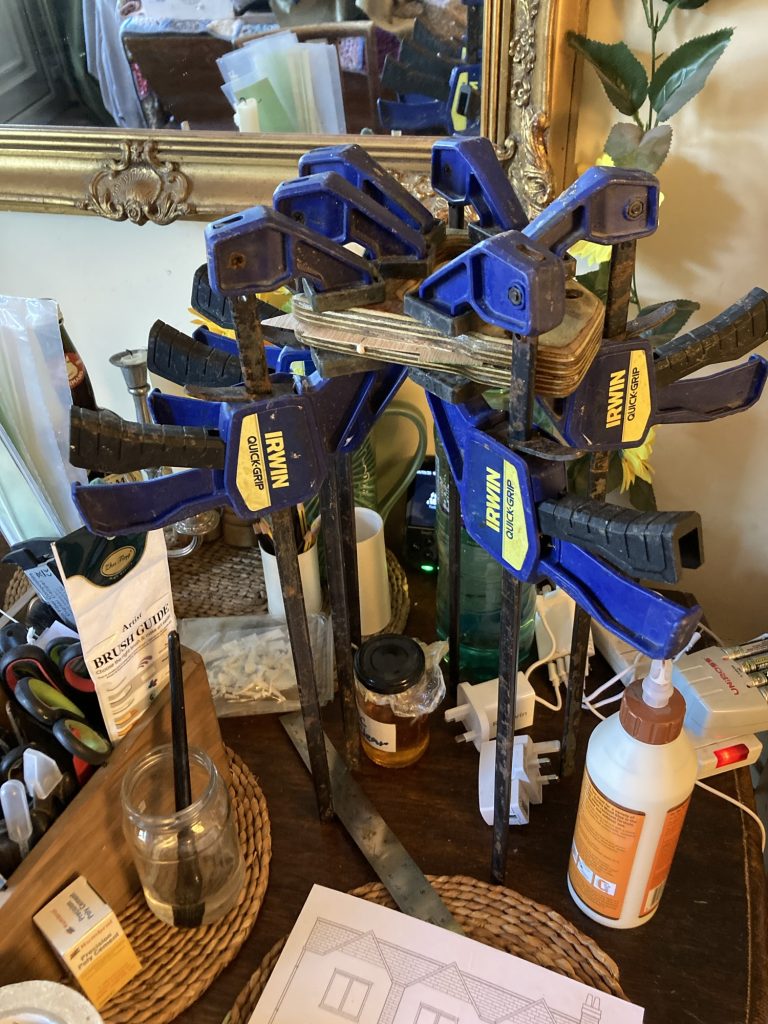

When it came time to glue the two halves of the handle back together, I needed to use a thin veneer – white oak scraps did the job – to re-establish a gap sufficient to re-insert the saw blade.

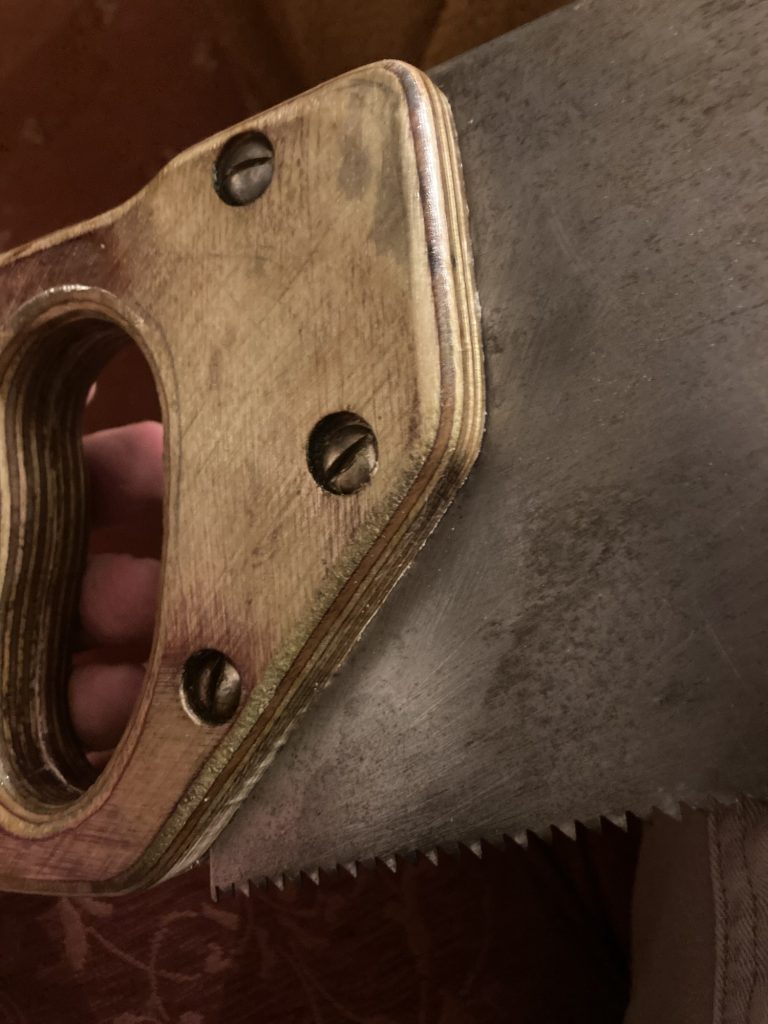

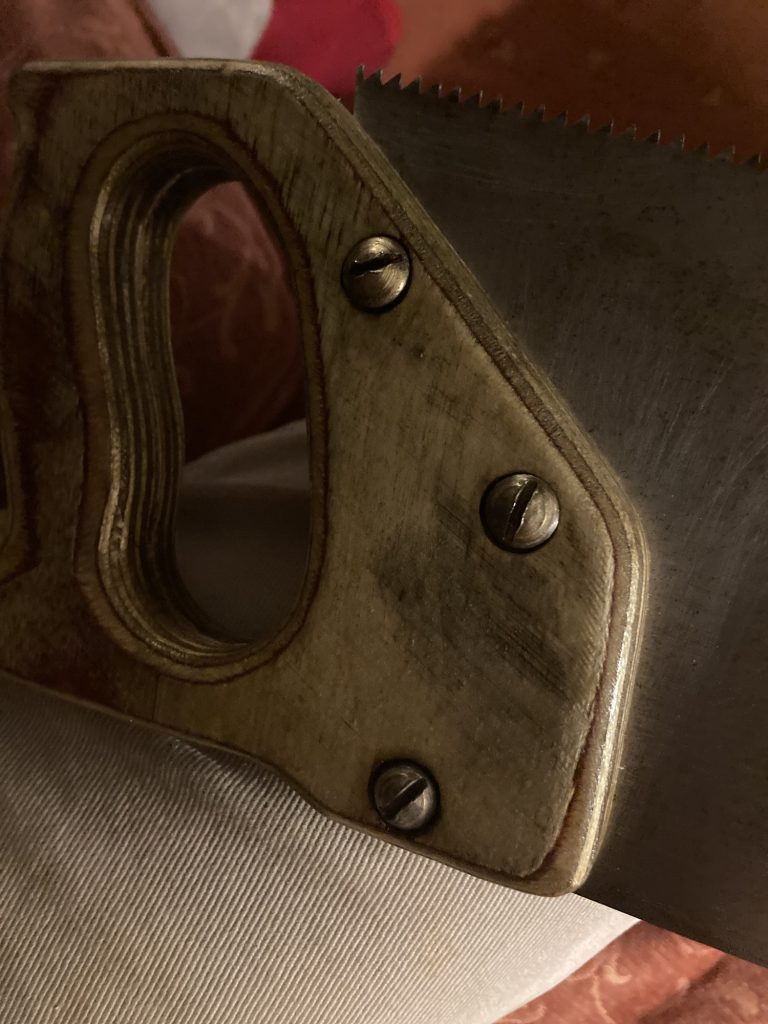

I also had to use a few different saws to clean out the blade insertion part of the handle, so I could slot it back in. I re-used the same fixtures to secure the blade. And it looks and feels a helluva lot better.

I oiled the screws in the handle, and the blade, with Teresa’s sewing machine oil. To combat rust encroachment.

Another little tool maintenance job done. I find these small tasks strangely satisfying!

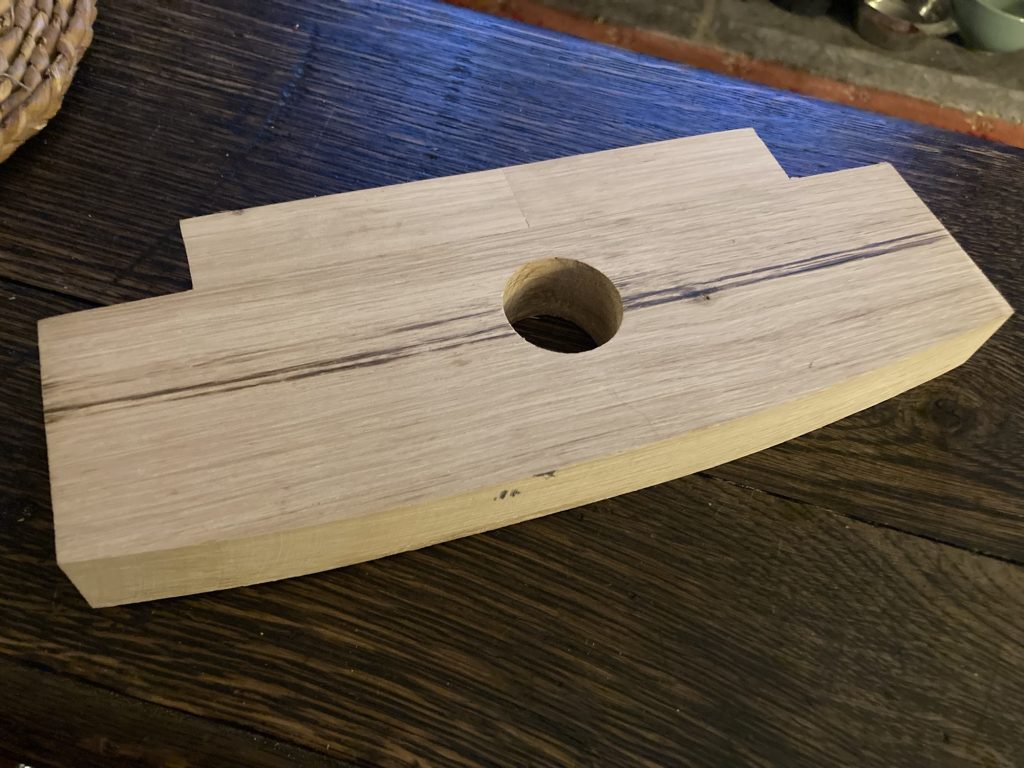

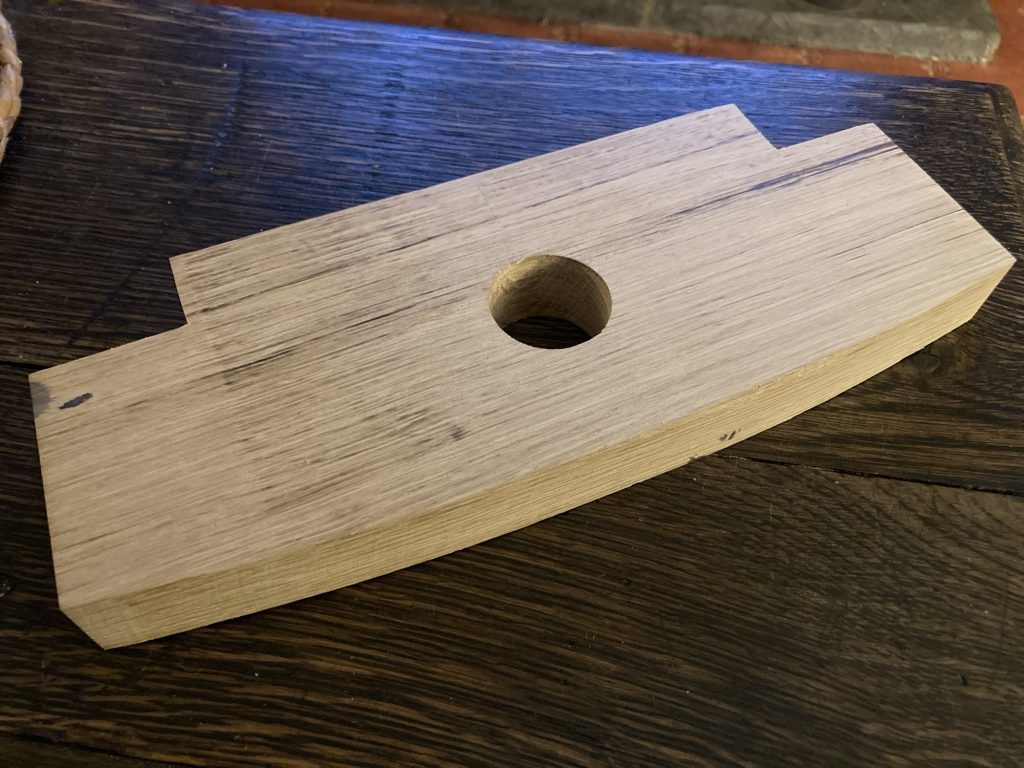

First thing I did today at Shedders & Fixers (hereafter S&F) was put my current project, a Paul Sellers style router plane – pics one and two below – through the drum sander. Thereby achieving a uniform thickness.

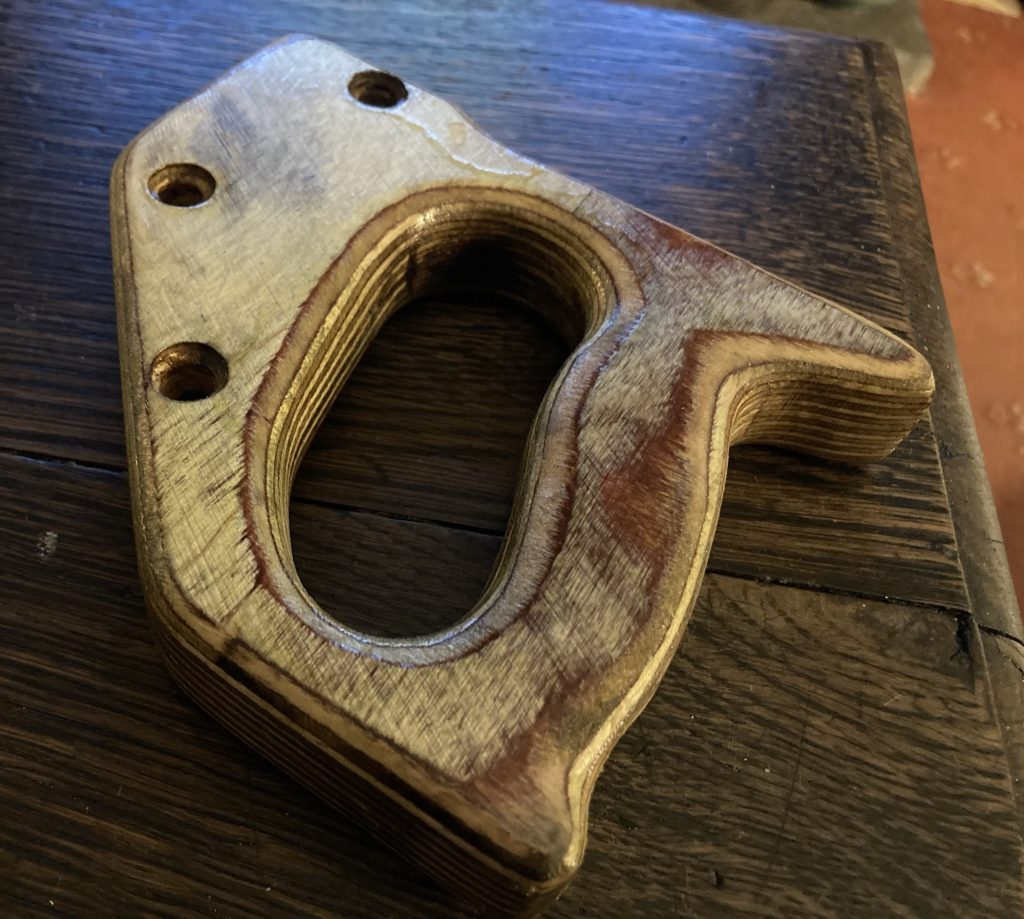

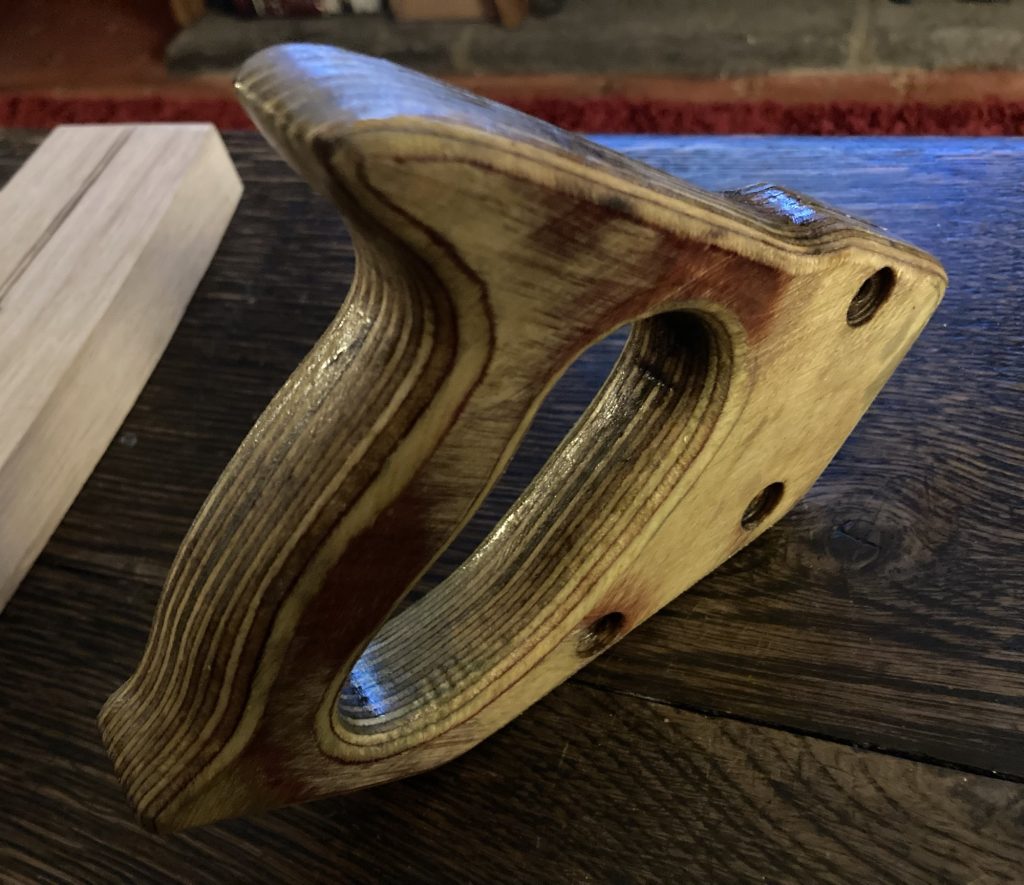

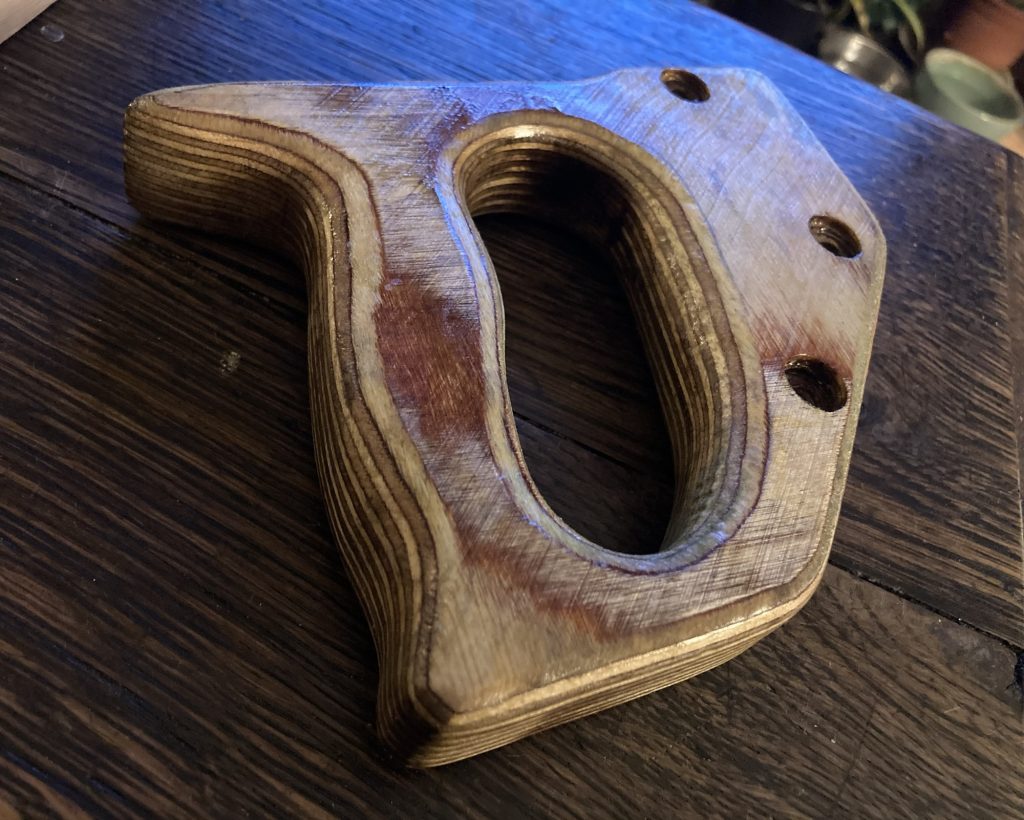

Second thing I did was take off and re-work a plywood saw handle, as shown in pics three to six, above. I made this some years ago, to replace a broken handle. But it was way too thick, and not terrifically well formed.

The drum sander once again did sterling service, bringing it down to a much better thickness. After thinning, I spent most of the rest of my time at S&F today shaping said handle; making it look and feel nicer.

I think I’ve put about five layers of shellac on it. But I’m not 100% sure? I really like how it looks; the way the shellac makes the plys ‘pop’!

The top four photos below show some rather nasty holes in the Keruing parts of this particular shell. Top row, as they were; below, after chisel clean up.

The bottom four photos, above, show other lesser bits of shell damage (pics five and six), and dowels that are no longer fully flush (seven and eight).

In the gallery below, pics one and two see me carve and fit a repair using the wrong wood (rosewood). Oops! Pics three and four I’m back using Keruing, aka the right wood.

Somewhat to my own amazement, I think this drum may turn out ok. Despite all the traumas and setbacks it’s suffered.

Leftover paella from yesterday’s family visit (Hannah and Tim), for dinner. Then a lovely pudding. And now I’m in bed. Could do a lot worse!

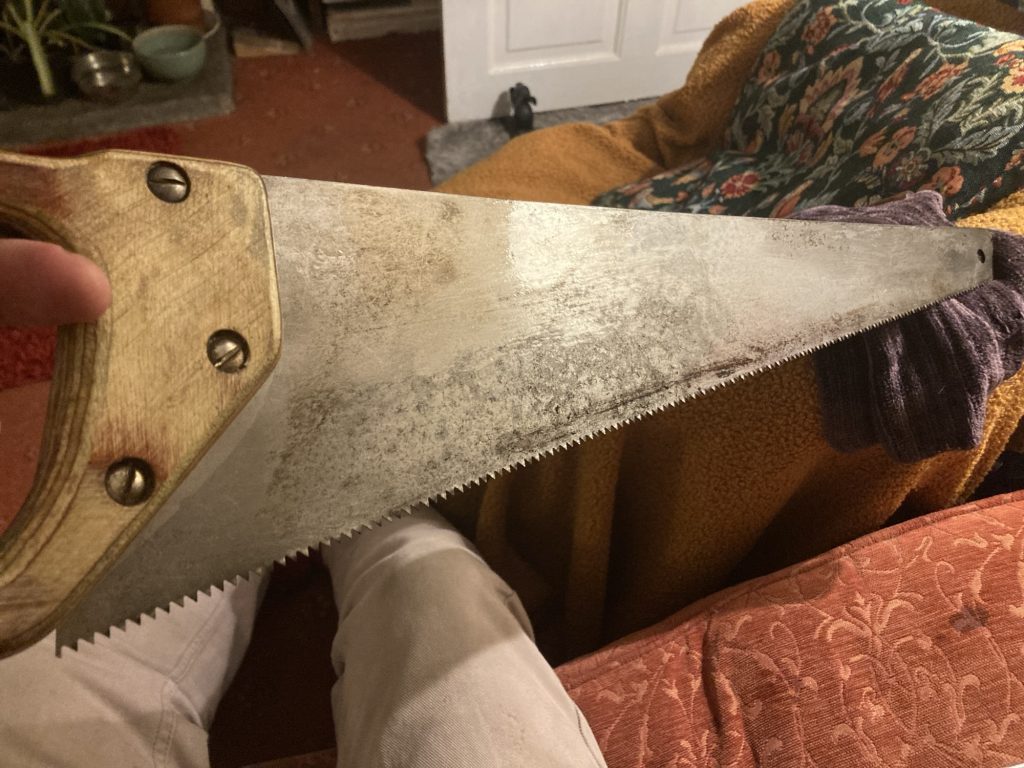

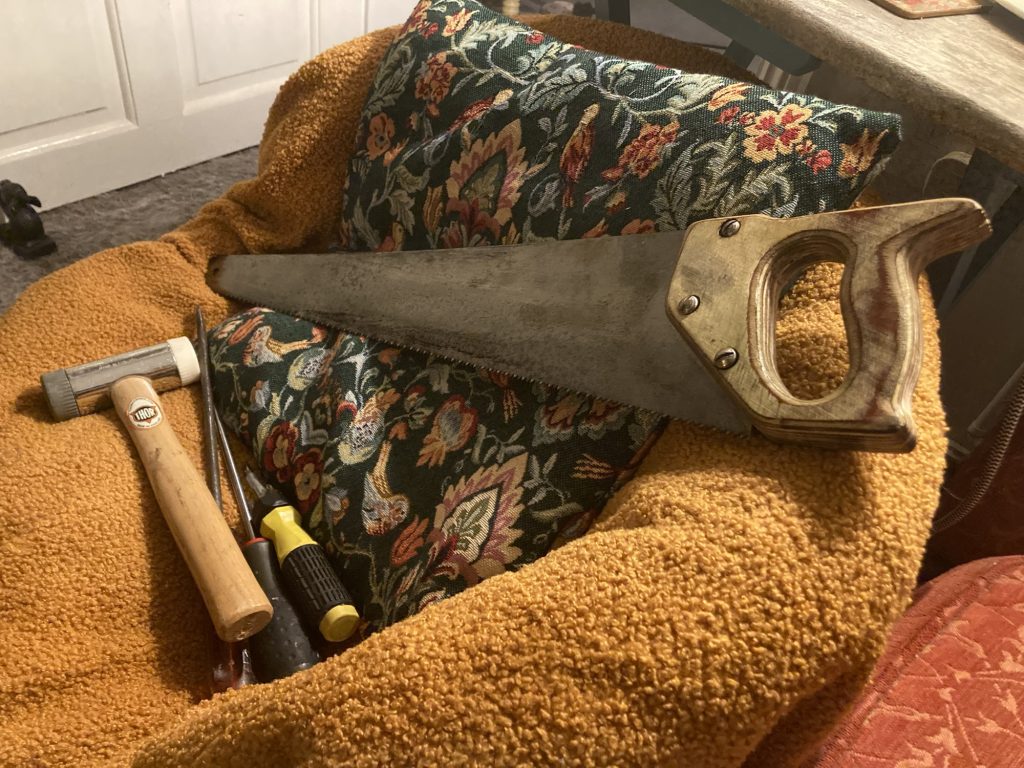

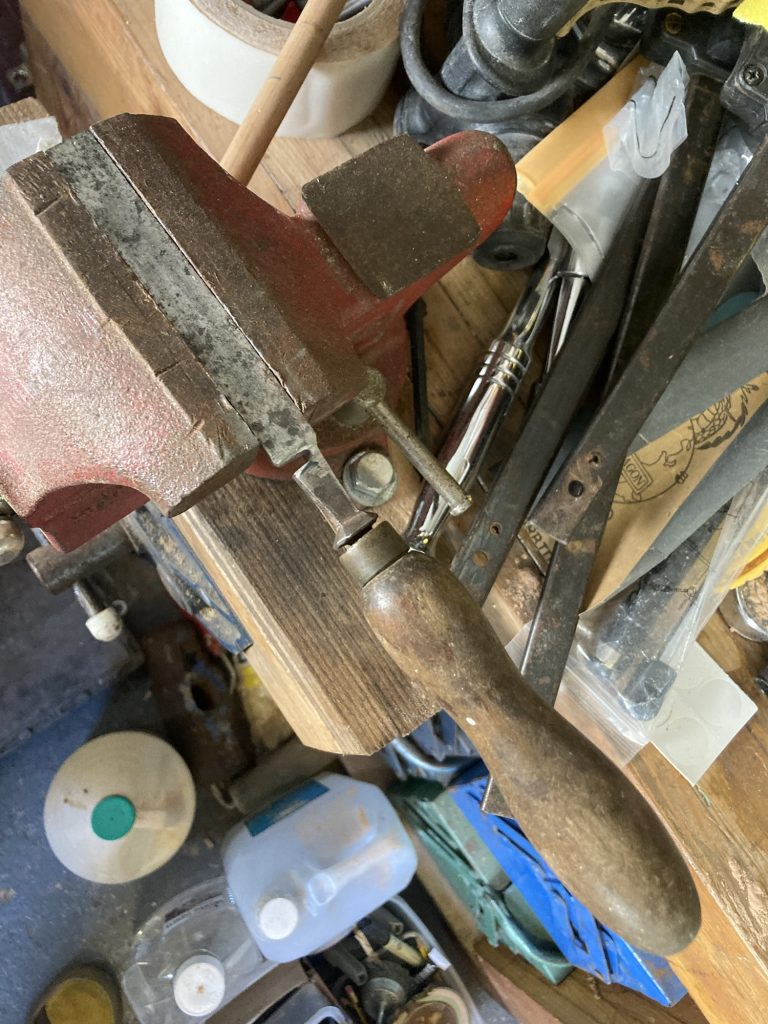

I’ve no idea where or when I acquired this particular saw! I’ve got quite a few saws. And I forget all the occasions on which I’ve found them. Mostly – this one included – they are freebies!

Above, the ‘before’ state.

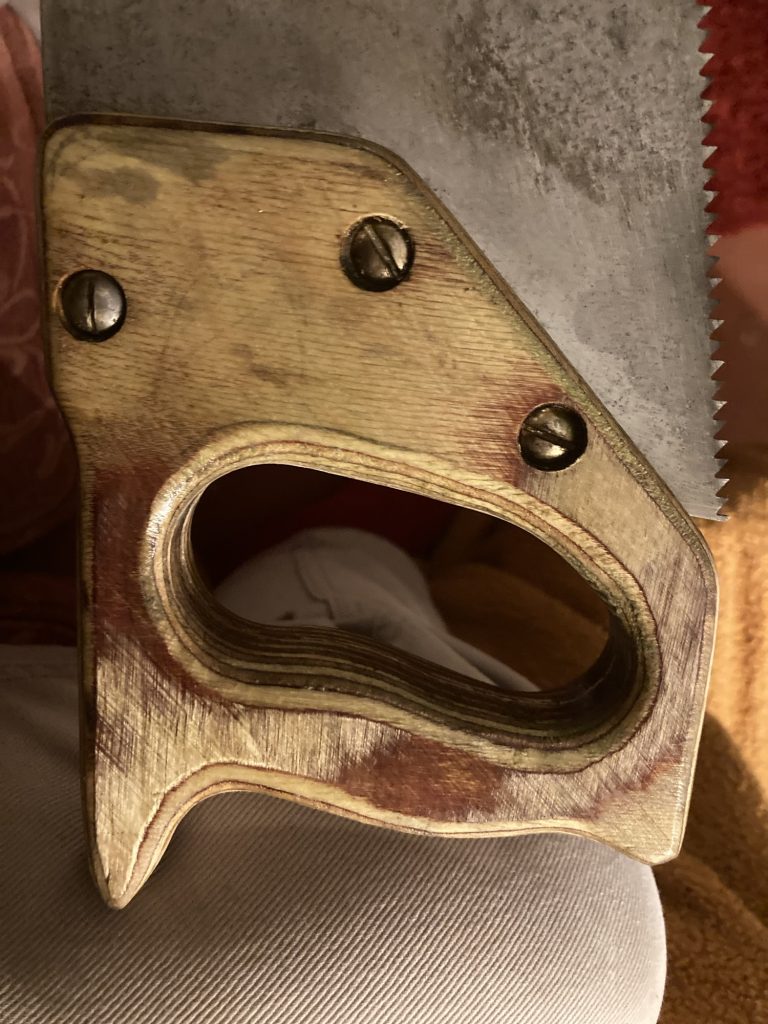

I took it apart, to clean and restore it. The handle has some damage. Just about visible above. More obvious in the pair of ‘after’ pics, below.

But I’m getting ahead of myself! Back to the restoration, in progress.

The metal bits went in a white vinegar bath, to get rid of the rust. I put a coat of pre-stain, and then a layer of shellac on the handle.

Above, the ‘after’ state.

I’ve tried to preserve some of the patina and character of the handle, whilst also improving it.

Having put it back together, I still want to do at least one more coat of shellac. Poss’ more? The blade needs oiling, to prevent re-rusting.

After oiling the metal parts, or at least the blade, I put a second coat of shellac on the handle.

The final job – tomorrow, perhaps? – will be sharpening the teeth. I doubt I’ll bother ‘setting’ them…
